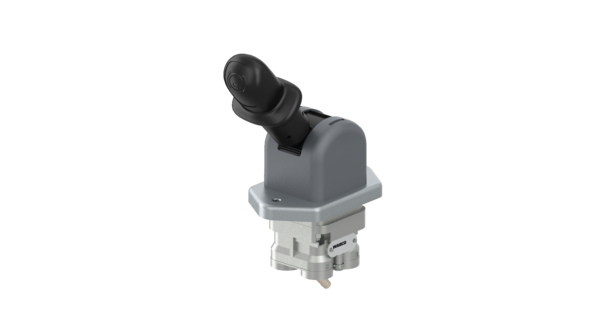

Handremventiel
Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
9617231370
Brutoprijs/Stuk:
459.00
Kenmerken en voordelen
-
MerkWABCO
-
Type onderdeelPremium OE kwaliteit
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Afstand tussen gaten80 mm
-
Bekrachtigingshoek73°
-
Berekend volume (dm³)1.4719
-
KleurGrey
-
Max. bedrijfsdruk10.0 bar
-
OntluchtingHose Nozzle Ø 6 mm
-
Ophanging2x M6
-
Schroefdraad poort 1M16 x 1.5 JED - 464
-
Schroefdraad poort 21M16 x 1.5 JED - 464
-
Schroefdraad poort 22M16 x 1.5 JED - 464
-
Temperatuurbereik-40°C to +80°C
-
Afmetingen (MM x MM x MM)177 x 126 x 66
-
GTIN04057875297451
-
Gewicht (kg)0.652
-
UPC193133370642
-
Gewicht (lb)1.4374
vervangt
-
RENAULT5010612810
-
VOLVO20718054
Doc Type
drawing
Locale
multi
Artical Number
9617231370____005_dascheck_a3_page-1---notset
Doc Type
service_information
Locale
nl
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Doc Type
service_information
Locale
bs_bosnian
Artical Number
Service & Reparatie
Lijst van vervangingsonderdelen
| 1 | onderkant komponent | 1 | ||
| 2 | Dichting | 1 | 9617230042 | |
| 3 | O-Ring ISO3601-5,7x1,9 | 1 | ||
| 4 | Afstandsschijf | 1 | ||
| 5 | Cylindrical compression spring | 1 | ||
| 6 | Klep | 1 | ||
| 7 | Cylindrical compression spring | 1 | 9617230012 9617230042 | |
| 8 | O-Ring MIN100 | 1 | 9617230012 9617230042 | 8970700704 |
| 9 | Zuiger | 1 | 9617236204 | |
| 10 | O-Ring ISO3601-28x2,5 | 1 | 9617230012 9617230042 | |
| 11 | Lower Cartridge | 1 | 9617232014 | |
| 12 | Klep | 1 | ||
| 13 | Afstandsschijf | 1 | ||
| 14 | O-Ring MIN100 | 1 | 9617230012 9617230042 | 8970700704 |
| 15 | O-Ring ISO3601-28x2,5 | 1 | 9617230012 9617230042 | |
| 16 | Higher Cartridge | 1 | 9617232024 | |
| 17 | Cylindrical compression spring | 1 | ||
| 18 | O-Ring ISO3601-8x1,5 | 1 | 9617230012 9617230042 | |
| 19 | Stoterstang | 1 | 9617237304 | |
| 20 | Needle roller DIN5402-2x7,8 | 1 | ||
| 21 | Afstandsschijf | 1 | ||
| 22 | Cylindrical compression spring | 1 | ||
| 23 | Afdekking | 1 | 9617236512 | |
| 24 | Fixation plate | 1 | ||
| 25 | Self locking hexagon nut DIN982-M5x6,3 | 2 | 9617230012 | |
| 26 | O-Ring ISO3601-8,9x1,9 | 1 | 9617230012 9617230042 | 8970866704 |
| 27 | Uitlaatpijp | 1 | 9617232204 | |
| 28 | Steunplaat | 1 | ||
| 29 | Screw (TORX) | 2 | ||
| 30 | Needle | 1 | 8951217514 | |
| 31 | Excenter | 1 | ||
| 32 | O-Ring ISO3601-6,4x1,9 | 1 | 9617230042 | |
| 33 | Plunjerklep | 1 | ||
| 34 | Head | 1 | ||
| 35 | Torsie veer | 1 | 8962010714 | |
| 36 | Houder | 1 | 9617233504 | |
| 37 | Fillister Head Screw | 1 | ||
| 38 | Motorkap | 1 | ||
| 39 | Motorkap | 1 | ||
| 40 | Beschermkap | 1 | ||
| 41 | Aanslag | 1 | ||
| 42 | Cylindrical compression spring | 1 | ||
| 43 | Bus | 1 | ||
| 44 | Bus | 1 | ||
| 45 | Cylindrical compression spring | 1 | ||
| 46 | Bus | 1 | ||
| 47 | Bus | 1 | ||
| 48 | Needle Roller DIN5402-2,18x14,3 | 4 | 9617230042 | 8954100204 |
| 49 | Handgreep | 1 |
