Single-Cylinder compressor, flange mounted
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9111535530
Preț unitar brut:
1394.00
Caracteristici și beneficii
-
MarcăWABCO
-
BucsaFoot mounting
-
Categorie produsDispozitiv
-
CodSingle Cylinder
-
Comentarii9111535530
-
Cursă piston56 mm
-
Diametru piston85.0 mm
-
Filet arbore cotitM20 x 1.5
-
Filet port 0M26 x 1.5
-
Filet port 2M26 x 1.5
-
Filet port 42x M16 x 1.5
-
Filet port 8.1Ø 13 mm
-
Filet port 9.1Ø 85 mm
-
Filet port 9.256 mm
-
LubrifiereSingle Cylinder Compressor
-
Presiune maximă de funcţionare12.0 bar
-
RăcireWater
-
Specificaţii tehniceSpecificaţie OE
-
Tip de funcţionareNormal pressure using unloader
-
Tip de piesăCalitate Premium originală
-
Viteză de funcţionare3000 (1/min)
-
Volum calculat (dm³)10.4731
-
Volum generat (cm3)318 cm3
-
Dimensiuni (MM x MM x MM)289 x 167 x 217
-
GTIN7895851073432
-
Masa/greutate (kg)12.845
-
UPC193133412274
-
Masa/greutate (lb)28.3183
Doc Type
drawing
Locale
multi
Artical Number
9111535530____005_dascheck_j8_page-1---notset
Doc Type
repair_test_instructions
Locale
ro
Artical Number
91200095
Service & reparație

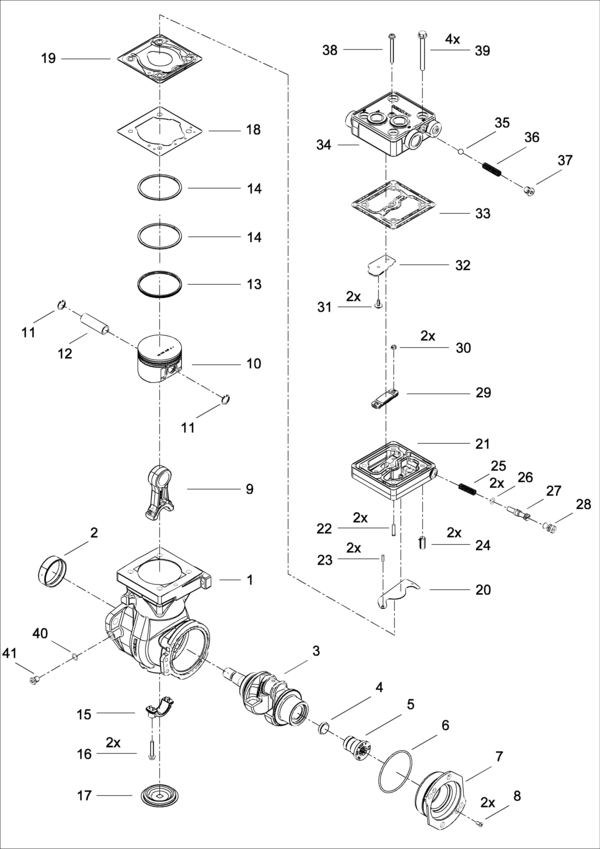

Listă piese de schimb
| 1 | Carter motor | 1 | ||
| 2 | Bucsa | 1 | 9111552004 | |
| 3 | Arbore cotit | 1 | ||
| 4 | Bușon | 1 | ||
| 5 | Ambreiaj | 1 | ||
| 6 | O-Ring ISO3601-84,0x3 | 1 | 8970731534 | |
| 7 | Acoperire | 1 | ||
| 8 | Countersunk head screw DIN966-M5x12 | 2 | 8101390014 | |
| 9 | Biela | 1 | ||
| 10 | Piston | 1 | 9111559262 | |
| 11 | Retaining ring DIN472-19x1 | 2 | ||
| 12 | Wrist Pin | 1 | ||
| 13 | Segment piston | 1 | ||
| 14 | Oil Control Ring ISO6621-85x2 | 2 | 8956704144 | |
| 15 | Biela | 1 | ||
| 16 | Cheese Head Screw ISO14580-M6x35 | 2 | 9111559262 | 8912019294 |
| 17 | Capac | 1 | 9111559262 | 8950735894 |
| 18 | Garnitură | 1 | ||
| 19 | Suction leaf | 1 | ||
| 20 | Reed valve | 1 | 9111530504 | |
| 21 | Galerie, colector | 1 | ||
| 22 | Slotted grub screw | 2 | ||
| 23 | Parallel pin | 2 | 8920135644 | |
| 24 | Slotted Spring Pin DIN7346-10x24 | 2 | ||
| 25 | Cylindrical compression spring | 1 | ||
| 26 | O-Ring, dynamical | 2 | ||
| 27 | Piston | 1 | 9120006204 | |
| 28 | Stop, opritor | 1 | ||
| 29 | Pressure valve | 1 | 4111515002 | |
| 30 | Hexagon nut ISO4161-M5 | 2 | ||
| 31 | Hexagon flange bolt DIN6921-M5x13 | 2 | ||
| 32 | Plate | 1 | 9111531004 | |
| 33 | Garnitură | 1 | ||
| 33 | Kit: Gasket | 1 | 9121799252 | |
| 34 | Acoperire | 1 | ||
| 35 | Ball ISO3290-10 | 1 | 8107010134 | |
| 36 | Compression Spring | 1 | ||
| 37 | Hexagon socket pipe plug DIN908-M12x1,5 | 1 | 8109020104 | |
| 38 | Cheese head screw ISO14580-M6x60 | 1 | ||
| 38 | Kit: Gasket | 1 | 9121799252 | |
| 39 | Hexagon Flange Bolt ISO4162-M8x80 | 4 | 8912119994 | |
| 39 | Kit: Gasket | 1 | 9121799252 | |
| 40 | Sealing ring DIN7603-A10x14 | 1 | 8114010274 | |
| 41 | Hexagon socket pipe plug DIN908-M10x1 | 1 |
