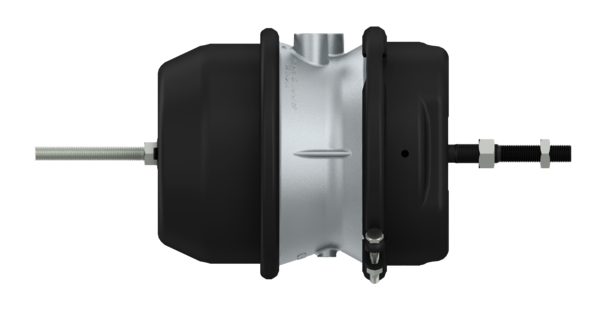

双膜片制动气室 T30/30
Twin-Cyl.Compressor 704cc,flangemounted
材料编号:
9253772010
毛单价:
0.00
Features and Benefits
-
品类WABCO 原厂
-
产品型号高端原配质量
-
技术标准OE标准
-
产品类别设备
-
卡箍Ø 209 mm
-
卡箍位置45°
-
叉头No
-
容积计算值（dm³）27.531
-
总长度340.0 mm
-
推杆螺纹M16 × 1.5
-
推杆长度225 mm
-
操作类型Cam
-
最大工作压力10.2/8.5 bar
-
温度范围-40°C to +80°C
-
版本号Without boot
-
直径206.5 mm
-
端口工作压力 [P emax.]10.2/8.5 bar
-
端口螺纹 11M16 x 1.5
-
端口螺纹 12M16 x 1.5
-
端口角Position Side port -90°
-
结构模型30/30
-
螺栓之间的距离120.6 mm
-
螺栓螺纹M16 x 1.5
-
螺栓长度42.5 mm
-
螺纹长度225 mm
-
行程64/64 mm
-
释放压力4.9 bar
-
长度239.0 mm
-
Size (mm x mm x mm)570 x 230 x 210
-
UPC193133413608
-
全球贸易项目代码04057875329299
-
重量 (kg)9.35
-
重量 (lb)20.6
Doc Type
drawing
Locale
multi
Artical Number
9253772010____005_dascheck_f8_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
tristop-d_trailer
Doc Type
catalog
Locale
en
Artical Number
pb19028
Doc Type
certificate
Locale
multi
Artical Number
623393_190505_bc0052.1_t3030_64_ddsbtse
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
服务&维修
配件列表
| 1 | 法兰 T30/30 | 1 | ||
| 2 | Lip seal ring | 1 | ||
| 3 | 引导管 | 2 | ||
| 4 | 推杆 | 1 | ||
| 5 | Insert | 1 | ||
| 6 | Diaphragm, metal | 1 | ||
| 7 | Sealing Piece | 1 | ||
| 8 | Spring guide | 1 | ||
| 9 | Barrel Spring | 1 | ||
| 10 | Spring lock washer | 1 | ||
| 11 | 盖板 | 1 | ||
| 12 | 销 | 1 | 9253921422 | |
| 13 | Washer 14x35x3 | 1 | 9253921422 | |
| 14 | 控制缸，工作缸 | 1 | ||
| 15 | Dust Plug | 1 | 9253840192 | |
| 16 | 铆钉 | 1 | ||
| 17 | 六角螺母 | 1 | 9253921422 | |
| 18 | Diaphragm | 1 | ||
| 19 | 活塞总成 | 1 | ||
| 20 | Conical Spring | 1 | 100870070 | |
| 21 | DUST SEAL | 1 | ||
| 22 | Cylinder cover | 1 | ||
| 23 | 六角螺母 | 2 | ||
| 24 | 卡箍 T30 | 1 | 4231073504 | |
| 25 | Hexagon Head Screw ISO 4017 M8x50 | 1 | ||
| 26 | Hexagon Nut ISO4032 M8 | 1 | ||
| 27 | 六角螺母 | 1 |
