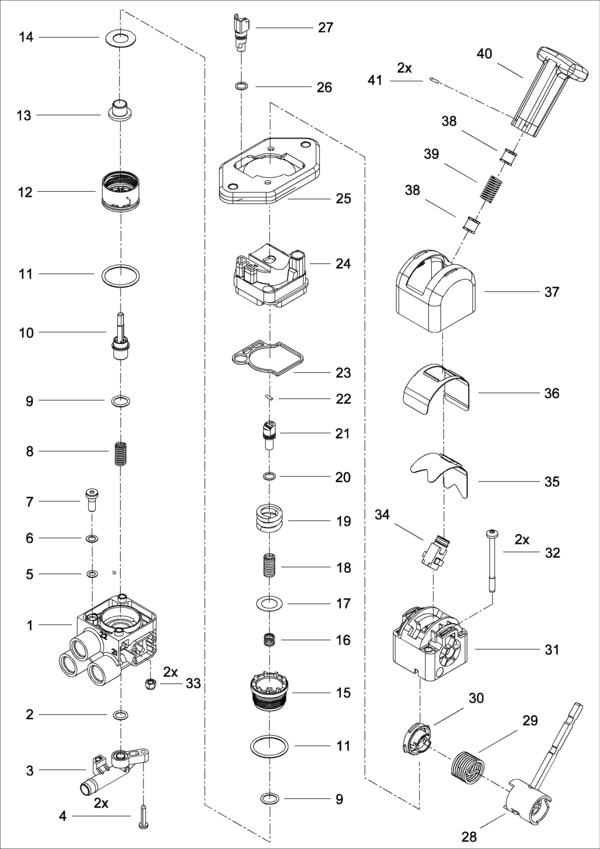

1 | Carrocería | 1 | 9617230182  | |
2 | Anillo "O" | 1 | 9617230002  | 8970866704  |
3 | Escape | 1 | 9617232234  | |
4 | Fillister head screw ISO14583-M4x20 | 2 | ||
5 | O-Ring ISO3601-5,7x1,9 | 1 | 9617230002  | |
6 | Arandela | 1 | ||
7 | Válvula | 1 | 9617230002  | |
8 | Cylindrical compression spring | 1 | 9617230002  | |
9 | Anillo "O" | 2 | 9617230002  | 8970700704  |
10 | Pistón | 1 | 9617236204  | |
11 | O-Ring ISO3601-28x2,5 | 2 | 9617230002  | |
12 | Espaciador | 1 | 9617232014  | |
13 | Válvula | 1 | 9617230002  | |
14 | Arandela | 1 | ||
15 | Espaciador | 1 | 9617232024  | |
16 | Cylindrical compression spring | 1 | 9617230002  | |
17 | Arandela | 1 | ||
18 | Cylindrical compression spring | 1 | ||
19 | Adjustment | 1 | ||
20 | O-Ring ISO3601-8x1,5 | 1 | 9617230002  | |
21 | Empujador | 1 | 9617237304  | |
22 | Needle roller DIN5402-2x7,8 | 1 | ||
23 | Junta | 1 | 9617230002  | |
24 | Cubierta | 1 | 9617236512  | |
25 | Placa | 1 | 9617230544  | |
26 | O-Ring ISO3601-6,4x1,9 | 1 | 9617230002  | |
27 | Émbolo de válvula | 1 | 9617230002  | |
28 | Excéntrica | 1 | ||
29 | Muelle de torsión | 1 | 8962010714  | |
30 | Soporte | 1 | 9617233504  | |
31 | Parte superior del cuerpo | 1 | 9617230134  | |
32 | Fillister Head Screw | 2 | ||
33 | Self locking hexagon nut DIN982-M5x6,3 | 2 | 9617230002  | |
34 | Tope | 1 | 9617236112  | |
35 | Capó de motor | 1 | 9617234524  | |
36 | Capó de motor | 1 | 9617234514  | |
37 | Tapa protectora | 1 | 9617234504  | |
38 | Anillo de rodadura | 2 | ||
39 | Cylindrical compression spring | 1 | ||
40 | Actuación | 1 | ||
41 | Pasador | 2 | 9617230002  | 8954100204  |
