Compressor

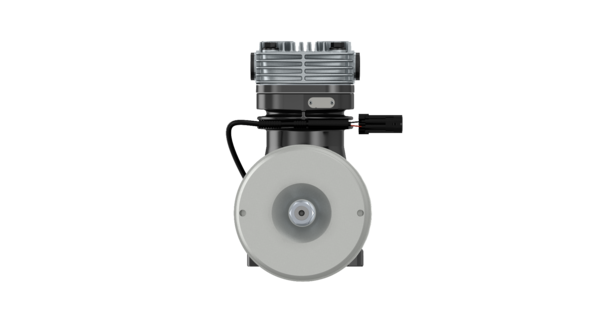

Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
411141103R
Brutoprijs/Stuk:
1376.00
Kenmerken en voordelen
-
MerkZF REMAN - WABCO
-
Type onderdeelGereconditioneerd
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Bedrijfssnelheid3000 (1/min)
-
Berekend volume (dm³)24.96
-
KoelingAir
-
Max. bedrijfsdruk8.5 bar
-
Schroefdraad poort 0M26 x 1.5
-
Schroefdraad poort 2M26 x 1.5
-
Schroefdraad poort 8.1M10 x 1
-
Slagvolume (cm3)159 cm3
-
SmeringLubrication supplied from engine
-
VoertuigtypeSingle Cylinder
-
Zuigerdiameter75 mm
-
Zuigerslag36 mm
-
Afmetingen (MM x MM x MM)390 x 320 x 200
-
GTIN04057875661115
-
Gewicht (kg)16.4
-
UPC193133400387
-
Gewicht (lb)36.16
vervangt
-
SINOTRUK (CNHTC)475195120
Doc Type
drawing
Locale
en
Artical Number
411141103r___005_dascheck_-8_page-1---notset
Doc Type
brochure
Locale
nl
Artical Number
wabco_reman_solutions_core_return_guidelines
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
catalog
Locale
nl
Artical Number
wabco_reman_solutions_catalogue_2021_web
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Reparatie

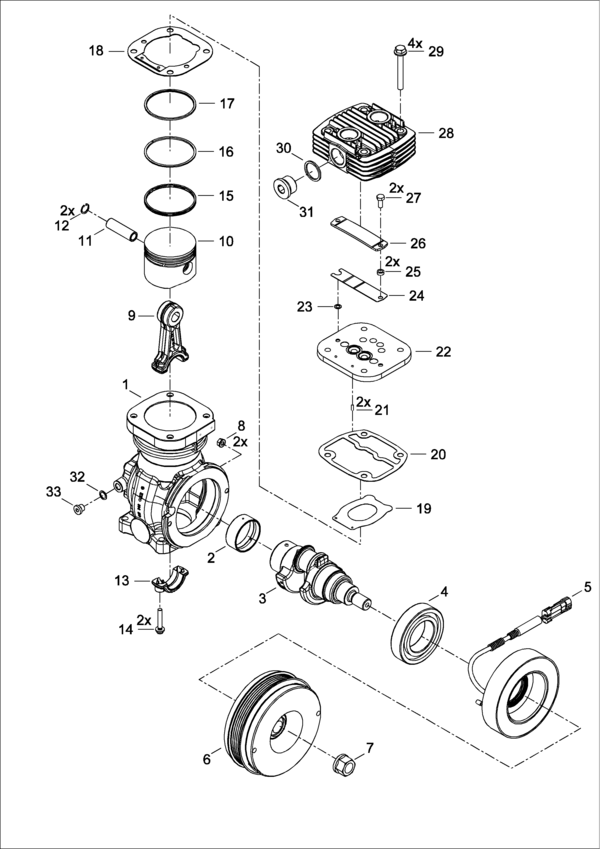

Lijst van vervangingsonderdelen
| 1 | Carter, krukaskamer | 1 | ||
| 2 | Bushing | 1 | ||
| 3 | Krukas | 1 | ||
| 4 | Rolling bearing DIN625-6210 C3 | 1 | ||
| 5 | Hefmagneet | 1 | 4111419252 | |
| 6 | Koppeling | 0 | 4111410252 | |
| 8 | Moer | 2 | 4111419252 | |
| 8 | Wheel nut DIN74361-B18 | 1 | 4111419252 | |
| 9 | Drijfstang | 1 | ||
| 10 | Zuiger | 1 | ||
| 11 | Bouten | 1 | ||
| 12 | SNAP RING | 2 | 8105180064 | |
| 13 | Connecting Rod Bottom | 1 | ||
| 14 | Schroef | 2 | 8912019294 | |
| 15 | Oil control ring ISO6621-75,5x4 | 1 | ||
| 16 | Taped single hook scraper ISO6623-75,5x2 | 1 | ||
| 17 | Piston Ring, compressors | 1 | ||
| 18 | Dichting | 1 | 8973169952 | |
| 19 | aanzuigklep | 1 | 4110410514 | |
| 20 | Dichting | 1 | 8973169964 | |
| 21 | Naaldlager | 2 | 8107020234 | |
| 22 | Klepzittingring | 1 | ||
| 23 | Afstandsschijf | 1 | ||
| 24 | druklamel | 1 | 4110410504 | |
| 25 | Bus | 2 | 8997574014 | |
| 26 | klepvanger | 1 | 4110414904 | |
| 27 | Setscrew | 2 | ||
| 28 | Cilinderdeksel | 1 | 4111416524 | |
| 29 | Bout M8 x 65 | 4 | 8912017014 | |
| 30 | Dichtring DIN7603-26x32 | 1 | 8114011004 | |
| 31 | Hexagon Socket Pipe Plug DIN908-M26x1,5 | 1 | 8109020194 | |
| 32 | DICHTRING | 1 | 8114010274 | |
| 33 | Hexagon socket pipe plug DIN908-M10x1 | 1 |
