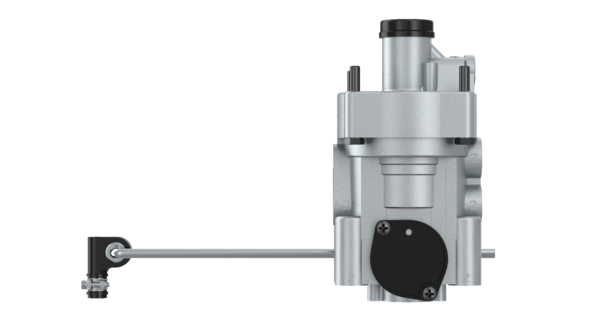

Load-Sensing Relay Emergency Valve
Twin-Cyl.Compressor 704cc,flangemounted
Referencia de producto:
4757120000
Precio unitario bruto:
620.00
Características y ventajas
-
MarcaWABCO
-
Tipo de piezaCalidad premium original
-
Especificaciones técnicasEspecificación OE
-
Categoría de productoDispositivo
-
Apoyo/suspensión4x M8
-
ComentariosWith lever. REV included
-
Distancia entre pernos84x84 mm
-
Información importanteIf you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here )
-
Presión de funcionamiento máx.10.0 bar
-
Rango de temperatura-40°C to +80°C
-
Rosca del puerto 1M16 x 1.5
-
Rosca del puerto 1-2M22 x 1.5
-
Rosca del puerto 22x M22x1.5, 4x M16x1.5
-
Rosca del puerto 3Escape
-
TipoMechanical
-
VersiónWith Integrated Emergency Valve
-
Volumen calculado (dm³)4.1017
-
Ángulo de accionamiento-50° to 20°
-
Dimensiones (MM x MM x MM)220 x 158 x 118
-
GTIN04057875225751
-
UPC193133444442
-
peso (kg)2.214
-
peso (lb)4.881
Reemplaza
-
DAF1325324
-
DAF1506665
-
FRUEHAUFAJA0918001
-
FRUEHAUFAJA09181
-
FRUEHAUFCF350908AJA09181
-
HENDRICKSON4757120000
-
IRISBUS500003984
-
IVECO500003984
-
KENWORTHS4757120000
-
LECITRAILER4110301
-
LEYLAND DAFBBU8129
-
LOHRA99000975
-
MERITORS4757120000
-
PETERBILTS4757120000
-
RENAULTAI39780001
-
SCANIA2090056
-
TIRSAN21151103198
-
ZORZI1012009
Doc Type
catalog
Locale
es
Artical Number
81500343
Doc Type
others
Locale
de
Artical Number
4757109023
Servicio y reparación
Listado de repuestos
| 1 | Parte inferior del cuerpo | 1 | ||
| 2 | Protector | 1 | 4757120002 | 8970179604 |
| 3 | Arandela | 1 | 4757120002 | |
| 4 | Remache tubular | 1 | 4757120002 | |
| 5 | Casquillo de bronce | 1 | 4757120002 | 8997608104 |
| 6 | Punta | 1 | 4757106904 | |
| 7 | Pasador Ranurado | 1 | 8105050634 | |
| 8 | Muelle de torsión | 1 | ||
| 9 | Excéntrica | 1 | ||
| 10 | O-Ring ISO3601-47,29x2,62 | 1 | 4757120002 | 8977868404 |
| 11 | Cubierta | 1 | ||
| 12 | Tornillo | 2 | 8912116404 | |
| 13 | Attachment link | 1 | ||
| 14 | Arandela | 1 | 8104010094 | |
| 15 | Hexagon head screw ISO4017-M6x12 | 1 | ||
| 16 | Radial Seal | 1 | 4757120002 | 8972080114 |
| 17 | Elemento de sujeción | 1 | ||
| 18 | Round head screw DIN607-M8x40 | 1 | ||
| 19 | Hexagon nut DIN6924-M8 | 1 | ||
| 20 | Tapa | 1 | 4757100414 | |
| 21 | Palanca | 1 | ||
| 22 | Split pin ISO1234-2x16 | 2 | 4757120002 | |
| 23 | Washer DIN125-1-8.4 | 2 | ||
| 24 | Pieza de compresión | 1 | 4757120002 | 4333003834 |
| 25 | Abrazadera de tubo flexible | 1 | 4757120002 | 8935104702 |
| 26 | Tapa | 1 | 8950712314 | |
| 27 | Tornillo | 1 | 8101260554 | |
| 28 | Rodillo | 1 | 4757101304 | |
| 29 | Varilla | 1 | 4757127704 | |
| 30 | Junta tórica ISO3601-4,3x2,4 | 1 | 4757120002 | 8970803004 |
| 31 | Back-up ring | 1 | 4757120002 | |
| 32 | Grooved lip seal | 1 | 4757120002 | 8971521504 |
| 33 | O-Ring ISO3601-45,69x2,62 | 1 | 4757120002 | 8970862104 |
| 34 | Pistón | 1 | ||
| 35 | Anillo "O" | 1 | 4757120002 | 8970805304 |
| 36 | Cylindrical compression spring | 1 | 4757120002 | |
| 37 | Válvula | 1 | 4757120002 | 8995058412 |
| 38 | O-Ring ISO3601-44x2 | 1 | 4757120002 | 8970823704 |
| 39 | Anillo de asiento de válvula | 1 | ||
| 40 | Retaining ring DIN 472 - 50x2 | 1 | ||
| 41 | O-Ring ISO3601-36x2,5 | 1 | 4757120002 | 8970829104 |
| 42 | O-Ring ISO3601-62x2 | 1 | 4757120002 | |
| 43 | Cubierta | 1 | ||
| 44 | Retaining ring DIN472-67x2,5 | 1 | ||
| 45 | Anillo "O" | 1 | 4757120002 | 8970704904 |
| 46 | Pistón | 1 | 4757106224 | |
| 47 | Retaining ring DIN471-A17x1 | 1 | 4757120002 | |
| 48 | Anillo de rodadura | 1 | ||
| 49 | Diaphragm 500 | 1 | 4757120002 | |
| 50 | Arandela | 1 | 4757120002 | 8970455104 |
| 51 | Pistón | 1 | ||
| 52 | Anillo de entrada | 1 | ||
| 53 | Anillo "O" | 3 | 4757120002 | 8970803704 |
| 54 | Válvula | 2 | 4757120002 | 8995058304 |
| 55 | Tapa | 1 | ||
| 56 | Cylindrical compression spring | 1 | ||
| 57 | Tapa | 1 | 4757120002 | 4757100424 |
| 58 | Anillo de Retencion | 1 | 4757120002 | 8105180124 |
| 59 | Retaining ring DIN472-17x1 | 1 | 4757120002 | |
| 60 | Tapa | 1 | ||
| 61 | Cylindrical compression spring | 1 | 4757120002 | |
| 62 | Parte superior del cuerpo | 1 | 4757100174 | |
| 63 | Pistón | 1 | ||
| 64 | Resorte | 1 | 8965116904 | |
| 65 | Tapa | 1 | ||
| 66 | Pistón | 1 | 4757106274 | |
| 67 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 68 | Retaining ring DIN472-33x1,2 | 1 | ||
| 69 | Protector | 1 | 8980113504 | |
| 70 | Tornillo | 4 | 8101260714 |
