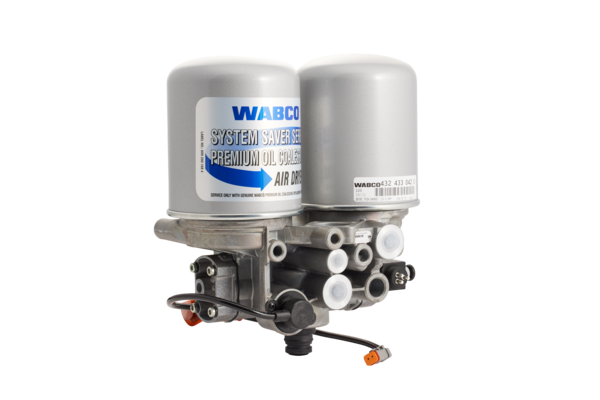

AD SysS Twin w/coal-1.0mm-Volvo heater
Twin-Cyl.Compressor 704cc,flangemounted
Onderdeelnummer::
4324330420
Brutoprijs/Stuk:
0.00
Kenmerken en voordelen
-
MerkWABCO
-
Type onderdeelPremium OE kwaliteit
-
Technische specificatieOE specificatie
-
ProductcategorieApparaat
-
Berekend volume (dm³)27.148
-
Max. bedrijfsdruk13.0 bar
-
OntluchtingJED-463-0
-
Openingsdruk11.00 bar
-
PatroontypeDesiccant and Oil separator Cartridge
-
Schroefdraad poort 111/2" - 14 NTPF
-
Schroefdraad poort 211/2" - 14 NPTF
-
Schroefdraad poort 3JED-463-0
-
Schroefdraad poort 4/231/4" - 18 NPTF
-
Spanning12 V
-
Temperatuurbereik-40°C to +65°C
-
Afmetingen (MM x MM x MM)406 x 292 x 229
-
GTIN04057876041855
-
Gewicht (kg)8.7724869
-
UPC193133437680
-
Gewicht (lb)19.34
vervangt
-
FREIGHTLINERTDAS4324330420
-
KENWORTHS432-433-042-0
-
MACK85128558
-
MACK6300-4324330420
-
MERITORS4324330420
-
PETERBILTS432-433-042-0
-
VOLVO85128558
-
VOLVOWAB4324330420
Doc Type
drawing
Locale
multi
Artical Number
4324330350____053_dascheck_k2_page-1---notset
Doc Type
catalog
Locale
en
Artical Number
pb19028
Doc Type
maintenance_instruction
Locale
en
Artical Number
tp19005
Doc Type
maintenance_instruction
Locale
en
Artical Number
mm34
Service & Reparatie
Lijst van vervangingsonderdelen
| 1 | Carrosserie | 1 | ||
| 2 | O-Ring ISO3601-48,9x2,62 | 1 | ||
| 3 | klepschijf | 1 | 4324312504 | |
| 4 | O-Ring ISO3601-47x2 | 1 | ||
| 5 | O-Ring | 1 | 8970815614 | |
| 6 | Klep | 1 | ||
| 7 | Zuiger | 1 | ||
| 8 | Afstandsschijf | 2 | 8951052734 | |
| 9 | DRUKVEER | 1 | 8965166134 | |
| 10 | Afstandsschijf | 1 | 8951090604 | |
| 11 | onderkant | 1 | 4324315512 | |
| 12 | Retaining ring DIN472-JV55x2 | 1 | ||
| 13 | Klep | 2 | ||
| 14 | O-Ring | 2 | 8977703404 | |
| 15 | Bus | 2 | ||
| 16 | Compression Spring, special | 2 | ||
| 17 | Zuiger | 2 | 4324056204 | |
| 18 | Membraan | 2 | 8971216004 | |
| 19 | O-Ring ISO3601-3,3x3 | 2 | 8977718004 | |
| 20 | Afdekking | 1 | ||
| 21 | 3/2 Valve Solenoid | 1 | ||
| 22 | CILINDERSCHR. | 8 | ||
| 23 | Afdekking | 1 | ||
| 24 | Default | 4 | 8104010094 | |
| 25 | verwarmingspatroon | 1 | 4324209202 | |
| 26 | Kit: Switch | 1 | 4324209202 | 8940409402 |
| 27 | Ondersteuning | 1 | 4324209202 | 4324083504 |
| 28 | SCHROEF | 1 | 4324209202 | |
| 29 | O-RING MIN20 | 1 | 4324209202 | 8977829104 |
| 30 | STEKKER | 1 | 4324209202 | 8941010302 |
| 31 | Schroef | 2 | 4324209202 | |
| 32 | O-Ring ISO3601-9x2,5 | 3 | ||
| 33 | kleplichaam | 1 | ||
| 34 | Conical Compression Spring | 1 | ||
| 35 | Afstandsschijf | 1 | ||
| 36 | Retaining ring DIN472-17x1 | 1 | ||
| 37 | O-Ring ISO3601-16,3x2,4 | 1 | ||
| 38 | O-Ring | 1 | 8970827904 | |
| 39 | Klepzittingring | 1 | ||
| 40 | Thread Fitting | 2 | ||
| 41 | O-Ring ISO3601-33x5 | 2 | ||
| 42 | Droogpatroon Air System Protector, Scania | 2 | 4329012252 |
