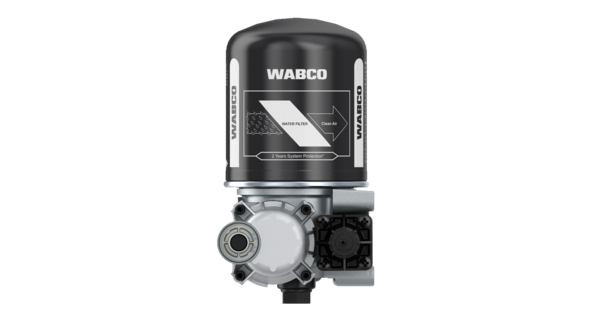

Air Dryer (Single Cannister)
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4324150330
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Back flow0.5 bar
-
Calculated Volume (dm³)11.55
-
Cartridge typeDesiccant Cartrige
-
Cut-out pressure10.5 bar
-
ExhaustSnap-on contour
-
Heater894 260 040 2
-
Heating connectionKostal M27 x 1
-
Max. operating pressure13.0 bar
-
Opening pressure13.00 bar
-
Operational range1.0+0.4 bar
-
Port thread 1M22 x 1.5 JED-388
-
Port thread 21M22 x 1.5 JED - 464
-
Port thread 3M22 x 1.5
-
Port thread 4/231/4" - 18 NPTF
-
Product categoryDevice
-
SilencerNo (432 407 060 0 retrofittable)
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
UnloaderYes
-
Voltage24 V
-
GTIN04057875172215
-
Size (mm x mm x mm)210 x 200 x 275
-
Weight (kg)4.37
Replaces
-
RENAULT5010376083
-
SCANIA390854
Doc Type
drawing
Locale
multi
Artical Number
4324150330____005_dascheck_d2_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-14x3 | 1 | 4324100052 | 8970815614 |
| 3 | Valve | 1 | 4324100052 | 8995062604 |
| 4 | Piston | 1 | 4324106224 | |
| 5 | O-Ring ISO3601-40,95x2,62 | 2 | 4324100052 | 8977860304 |
| 6 | Valve head | 1 | 4324100052 | 4324102504 |
| 7 | Washer | 2 | 8951090604 | |
| 8 | Washer | 3 | 8951052734 | |
| 9 | Compression Spring, special | 1 | ||
| 10 | Bottom | 1 | ||
| 11 | Retaining ring DIN472-47x1,75 | 1 | 4324100052 | 8105180544 |
| 12 | Threaded fitting | 1 | ||
| 13 | O-Ring ISO3601-33x5 | 1 | 8977887204 | |
| 14 | Air Dryer Cartridge, compressed-air system | 1 | 4324100202 | |
| 15 | Kit: Switch | 1 | 8940409402 | |
| 16 | Heater cartridge | 1 | 8942600502 | |
| 17 | Support | 1 | 4324083504 | |
| 18 | Tapping screw ISO7049-B2,9x6,5 | 1 | ||
| 19 | O-Ring ISO3601-36x2,5 | 1 | 4324100052 | 8977829104 |
| 20 | Male Connection | 1 | 8941010302 | |
| 21 | Screw | 2 | ||
| 22 | Diaphragm | 1 | 8971321684 | |
| 23 | Cap | 1 | ||
| 24 | Cylindrical compression spring | 1 | ||
| 25 | O-Ring ISO3601-4,3x2,4 | 1 | 8970803004 | |
| 26 | Filter | 1 | ||
| 27 | Cover | 1 | 4324136514 | |
| 28 | Cheese head screw ISO4762-M6x20 | 4 | ||
| 29 | Valve body | 1 | 9325002352 | |
| 30 | Valve | 1 | 9325002352 | |
| 31 | Cap | 1 | 9325002352 | |
| 32 | Cylindrical Compression Spring | 1 | 9325002352 | 8960419304 |
| 33 | Cap | 1 | 9325002352 | |
| 34 | Cylindrical compression spring | 1 | 9325002352 | |
| 35 | Cap | 1 | 9325002352 | |
| 36 | O-Ring ISO3601-32x2,5 | 1 | 9325002352 | 8977705804 |
| 37 | Guide | 1 | 9325002352 | |
| 38 | Retaining ring DIN472-37x1,5 | 1 | 9325002352 | 8105180254 |
| 39 | Hexagon Nut DIN6923-M6 | 1 | 9325002352 | 8915810004 |
| 40 | Hex socket set screw DIN914-M6x30 | 1 | 9325002352 | |
| 41 | Plug | 1 | 9325002352 | |
| 42 | Plunger | 1 | 4324100052 | 9753037724 |
| 43 | Valve | 1 | 4324100052 | 8995068992 |
| 44 | Cylindrical Compression Spring | 1 | 4324100052 | 8965144304 |
| 45 | Cap | 1 | 4324100052 | 8950725604 |
| 46 | Cup Seal | 1 | 4324100052 | 8971816604 |
| 47 | Retaining washer DIN6799-4 | 1 | 4324100052 | 8105190274 |
| 48 | Cap | 1 | 4324100052 | |
| 49 | Cover | 1 | 4324100052 | 8950725404 |
| 50 | Cylindrical Compression Spring | 1 | 8965144104 | |
| 51 | Cover | 1 | ||
| 52 | Adjusting nut | 1 | 4324100052 | 9753034304 |
| 53 | O-Ring ISO3601-13x1 | 1 | 4324100052 | 8970708904 |
| 54 | Cover | 1 | 9753036504 | |
| 55 | Fillister head screw ISO7045-M6x25 | 4 | 8912015704 | |
| 56 | Hex Socket Set Screw DIN914-M6x35 | 1 | 4324100052 | 8102080164 |
| 57 | O-Ring ISO3601-7,3x2,4 | 1 | 4324100052 | 8970800704 |
| 58 | Valve body | 1 | 4324100052 | 8995069834 |
| 59 | Conical compression spring | 1 | 4324100052 | 8960536014 |
| 60 | Valve seat | 1 | 4324100052 | 4324101414 |
