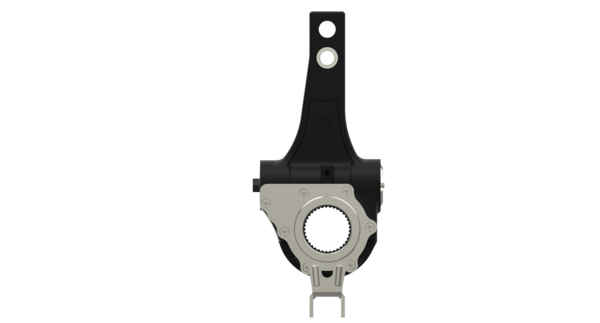

Automatic Slack Adjuster
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4332251800
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuating directionCounterclockwise
-
Calculated Volume (dm³)1.812
-
Clevis pins12.8 + 15 mm
-
Length6.00 / 7.00 in
-
Length of lever152.4 / 177.8 mm
-
MountingInternal Spline : Spline standard:ANSI B92.1, tolerence class 6 x 37 Teeth x45° x 24/48
-
Number of connectors2
-
Product categoryDevice
-
Technical specificationOE specification
-
VersionAutomatic
-
Wrench sizeHEX12
-
GTIN04057875610472
-
Size (mm x mm x mm)274.5 x 55 x 120
-
UPC193133402770
-
Weight (kg)3
-
Weight (lb)6.614
Doc Type
drawing
Locale
en
Artical Number
4332251800____005_dascheck_c5_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Gear | 1 | ||
| 3 | O-Ring, dynamical ISO3601-12.37x2.62 | 1 | ||
| 4 | Gear Wheel | 1 | ||
| 5 | Bearing | 1 | ||
| 6 | O-Ring, dynamical | 1 | ||
| 7 | Cover | 1 | ||
| 8 | Rivet Pin | 2 | ||
| 9 | Spring Seat | 1 | ||
| 10 | Compression Spring, special | 1 | ||
| 11 | O-Ring, dynamical | 1 | ||
| 12 | Spring guide | 1 | ||
| 13 | Slotted pan head screw; A | 1 | ||
| 14 | Guide | 1 | ||
| 15 | Shaft | 1 | ||
| 16 | Torsion spring | 1 | ||
| 17 | Gear | 1 | ||
| 18 | Spring | 1 | ||
| 19 | O-Ring, statical | 1 | ||
| 20 | Gear/Pinion | 1 | ||
| 21 | O-Ring, statical | 1 | ||
| 22 | Gasket, flat | 1 | ||
| 23 | Arm | 1 | ||
| 24 | Countersunk Screw, full thread | 7 | ||
| 25 | Bush | 1 |
