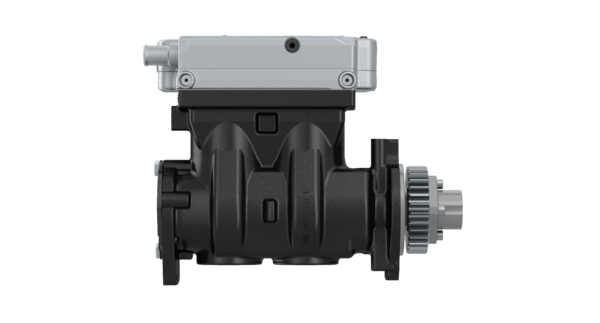

Twin-Cyl.Compressor 636cc,flangemounted
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9115150200
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)18.178
-
CoolingWater
-
Crankshaft threadM20 x 1.5
-
LubricationLubrication supplied from engine
-
Max. operating pressure10.0 bar
-
MountingFlange mounting
-
Operating speed3000 (1/min)
-
Piston diameter85.0 mm
-
Piston stroke56 mm
-
Port thread 0Ø 25 mm
-
Port thread 2M27 x 2.0
-
Port thread 4M10 x 1.0
-
Port thread 8.1Ø 8 mm
-
Port thread 93/4" -16 UNF-2B
-
Port thread 9.13/4" -16 UNF-2B
-
Port thread 9.23/4" -16 UNF-2B
-
Product categoryDevice
-
Swept volume (cm³)636 cm3
-
Technical specificationOE specification
-
Temperature range-30°C to +90°C
-
TypeTwin Cylinder
-
GTIN04057875273608
-
Size (mm x mm x mm)393.8 x 149 x 309.8
-
UPC193133019169
-
Weight (kg)23.994
-
Weight (lb)52.8977
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Repair
List of Spare Parts
| 1 | Crankcase | 1 | ||
| 2 | Crank Shaft | 1 | ||
| 3 | Parallel Pin | 5 | 9115159202 | |
| 4 | Toothed wheel | 1 | ||
| 5 | Hexagon head screw M20x1,5x52 | 1 | ||
| 6 | Adapter | 1 | ||
| 7 | 4 | |||
| 8 | Rolling bearing DIN625-6308 C3 | 1 | 8107071574 | |
| 9 | Reducing piece | 1 | 9115159262 | |
| 10 | O-Ring | 1 | 9111539252 | 8977729084 |
| 11 | Flange | 1 | 9111539252 | 9111536034 |
| 12 | Countersunk head screw DIN7991-M6x12 | 2 | 9111539252 | |
| 13 | O-Ring ISO3601-69,45x3,53 | 1 | ||
| 14 | Cover | 1 | 9111534714 | |
| 15 | Hexagon head screw DIN933-M10x20 | 2 | ||
| 16 | Connecting rod | 1 | ||
| 17 | Connecting Rod | 1 | ||
| 18 | Cheese Head Screw ISO14580-M6x35 | 2 | 8912019294 | |
| 19 | Cap | 2 | 8950735894 | |
| 20 | Piston | 2 | ||
| 21 | Sealing | 1 | 9115159202 | 8973344994 |
| 21 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 22 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 22 | Reed valve | 2 | 9115159202 | |
| 23 | Needle Roller DIN5402-B3x9,8G5 | 4 | 9115159202 | 8107020234 |
| 24 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 24 | Reed valve | 2 | 9115159202 | |
| 25 | Slotted Spring Pin DIN7346-10x24 | 4 | 9115159202 | |
| 26 | Manifold | 1 | 9115159202 | |
| 27 | Spring guide | 2 | 9115159202 | |
| 28 | Cylindrical Compression Spring | 2 | 9115159202 | |
| 29 | O-Ring ISO3601-8,3x2,4 | 6 | 9115159202 | |
| 30 | Piston | 2 | 9115159202 | |
| 31 | Stop | 2 | 9115159202 | |
| 32 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 32 | Gasket Upper | 1 | 9115159202 | |
| 33 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 33 | Pressure valve | 2 | 9115159202 | |
| 34 | Cheese Head Screw,special type | 4 | 9115159202 | |
| 34 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 35 | Cover | 1 | 9115159202 | |
| 36 | Compression Spring | 1 | 9115159202 | |
| 37 | Screw Plug ISO6149 M12x1.5 | 1 | 9115159202 | |
| 38 | Cheese head screw ISO14580-M6x60 | 7 | 9115159202 | |
| 38 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 39 | Kit: Valve Plate | 1 | 9115159202 | 9115159232 |
| 39 | Hexagon Flange Bolt ISO4162-M8x80 | 6 | 9115159202 | 8912119994 |
| 40 | Screw plug | 1 |
