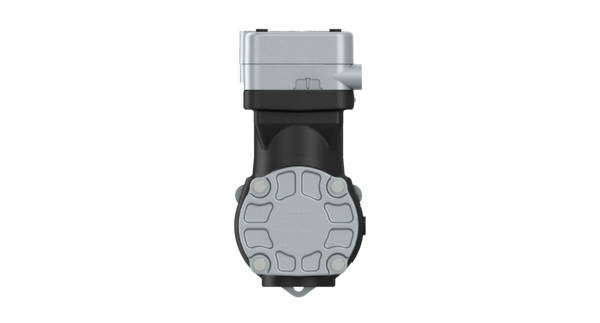

One-Cylinder Compressor-85 Ashok Leyland
Vehicle application (India): Ashok Leyland
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9121700010
Gross Unit Price:
0.00
Vehicle application (India): Ashok Leyland
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)7.249
-
CoolingWater
-
Crankshaft threadM18 x 1.5
-
LubricationLubrication supplied from engine
-
Max. operating pressure12.5 bar
-
MountingFlange mounting
-
Operating speed3000 (1/min)
-
Piston diameter85.0 mm
-
Piston stroke56 mm
-
Port thread 0M26 x 1.5
-
Port thread 2M26 x 1.5
-
Port thread 8.1M10 x 1.5
-
Port thread 9M18 x 1.5
-
Port thread 9.1M18 x 1.5
-
Port thread 9.2M18 x 1.5
-
Product categoryDevice
-
Swept volume (cm³)318 cm3
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeSingle Cylinder
-
GTIN04057875386261
-
Size (mm x mm x mm)173 x 143 x 293
-
UPC193133466567
-
Weight (kg)12
-
Weight (lb)26.46
Doc Type
drawing
Locale
en
Artical Number
9121700010____005_dascheck_d3_page-1---notset
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Repair
List of Spare Parts
| 1 | Crankcase Honning | 1 | ||
| 2 | Bush | 1 | ||
| 3 | Crankshaft | 1 | ||
| 4 | O-Ring ISO3601-84,0x3 | 1 | 9121709252 | 8970731534 |
| 5 | Flange | 1 | ||
| 6 | Hexagon Head Screw, full thread | 4 | 9121709252 | |
| 7 | Woodruff Key | 1 | 9121709252 | |
| 8 | Lock Washer | 1 | 9121709252 | |
| 9 | Hexagon nut | 1 | 9121709252 | |
| 10 | Upper part of the connection rod | 1 | ||
| 11 | Piston | 1 | ||
| 12 | Piston ring | 1 | ||
| 13 | Piston ring | 2 | ||
| 14 | Wrist Pin | 1 | ||
| 15 | Retaining ring DIN472-19x1 | 2 | ||
| 16 | Connecting Rod Lower Part | 1 | ||
| 17 | Cheese Head Screw ISO14580-M6x35 | 2 | 8912019294 | |
| 18 | Cap | 1 | 8950735894 | |
| 19 | Gasket | 1 | 9121709232 9121709242 | |
| 20 | Manifold | 1 | 9121709242 | |
| 21 | Hexagon head screw ISO4017-M5x18 | 2 | 9121709242 | |
| 22 | Pressure valve | 1 | 9121709232 9121709242 | |
| 23 | Hexagon nut ISO4161-M5 | 2 | 9121709232 9121709242 | |
| 24 | Gasket | 1 | 9121709232 9121709242 | |
| 25 | Cylinder cover | 1 | 9121709242 | |
| 26 | Plate | 1 | 9121709242 | |
| 27 | Set screw | 2 | 9121709242 | |
| 28 | Cheese head screw ISO14580-M6x50 | 1 | 9121709232 9121709242 | |
| 29 | Hexagon Flange Bolt ISO4162-M8x80 | 4 | 9121709232 9121709242 | 8912119994 |
