Hand Brake Valve, Truck Parking
Vehicle application (India): Daimler (Bharat Benz)
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9611700000
Gross Unit Price:
0.00
Vehicle application (India): Daimler (Bharat Benz)
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle73°
-
Calculated Volume (dm³)0
-
Distance between holes90x90 mm
-
ExhaustHose Nozzle Ø 12 mm
-
Max. operating pressure13.0 bar
-
Mounting4x Ø 7 mm
-
Port thread 1M16 x 1.5
-
Port thread 21M22 x 1.5
-
Port thread 22M12 x 1.5
-
Product categoryDevice
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
GTIN04057875674917
-
UPC193133522973
-
Weight (kg)0
-
Weight (lb)0
Doc Type
drawing
Locale
en
Artical Number
9611700000____005_dascheck_a10_page-1---notset
Doc Type
service_information
Locale
en
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Service & Repair

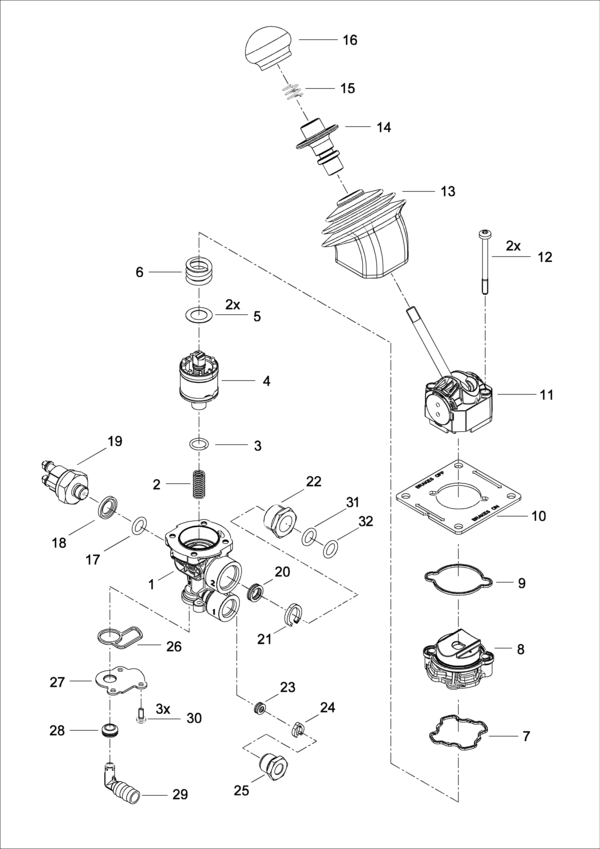

List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Cylindrical compression spring | 1 | ||
| 3 | O-Ring ISO3601-12x2 | 1 | 9611700772 | 8970700704 |
| 4 | Cartridge | 1 | 9611700772 | 9611702212 |
| 5 | Washer | 2 | ||
| 6 | Cylindrical compression spring | 1 | ||
| 7 | Gasket, flat | 1 | 9611700772 | |
| 8 | Body | 1 | ||
| 9 | Gasket, flat | 1 | 9611700772 | |
| 10 | Bracket | 1 | ||
| 11 | Cover | 1 | ||
| 12 | Fillister Head Screw | 2 | ||
| 13 | Boot | 1 | 9611700772 | |
| 14 | Sleeve | 1 | 9611703704 | |
| 15 | Spring | 1 | 9611700772 | |
| 16 | Knob | 1 | 9611707912 | |
| 17 | O-Ring, statical | 1 | 9611700772 | |
| 18 | Washer, special type | 1 | 9611700772 | 8951800004 |
| 19 | Low Pressure switch | 1 | 100250040 | |
| 20 | Spring Retainer | 1 | 4611001192 | |
| 21 | Retaining Ring | 1 | 4611001192 | 8952266974 |
| 22 | Pressure screw | 1 | 4611001192 | 8932204272 |
| 23 | Spring Retainer | 1 | ||
| 24 | Retaining Ring | 1 | 8952267064 | |
| 25 | Male Nut | 1 | 8932204282 | |
| 26 | Gasket, flat | 1 | 9611700772 | |
| 27 | Plate | 1 | ||
| 28 | Rubber Ring Seal | 1 | 9611700772 | |
| 29 | Exhaust Tube | 1 | ||
| 30 | Cheese Head Screw | 3 | 9611700772 | |
| 31 | O-Ring, statical | 1 | 4611001192 | |
| 32 | O-Ring, statical | 1 | 4611001192 |
