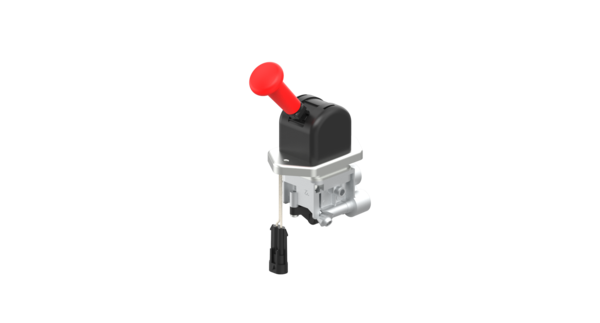

Hand Brake Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9617230070
Gross Unit Price:
263.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle73°
-
Calculated Volume (dm³)1.2168
-
ColorYellow/Red
-
CommentsWith electrical switch
-
Distance between holes80 mm
-
ExhaustFlap
-
Max. operating pressure11.0 bar
-
MountingM6
-
Port thread 1M16 x 1.5
-
Port thread 21M16 x 1.5
-
Port threadsM16 x 1.5
-
Product categoryDevice
-
Rated current500 mA
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage24 V
-
GTIN04057875296737
-
Size (mm x mm x mm)179 x 103 x 66
-
UPC193133369882
-
Weight (kg)0.785
-
Weight (lb)1.7306
Replaces
-
ALEXANDER DENNISAB9617230070
-
DAF1505334
-
IRISBUS8137037
-
IVECO08137037
-
IVECO8137037
-
IVECO141786
-
IVECO41002768
-
IVECO500303739
-
IVECO98405733
-
IVECO98474180
-
KING LONG235500920
-
PACCAR1505334
-
VDL20233219
-
VDL233219
Doc Type
service_information
Locale
en
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Service & Repair

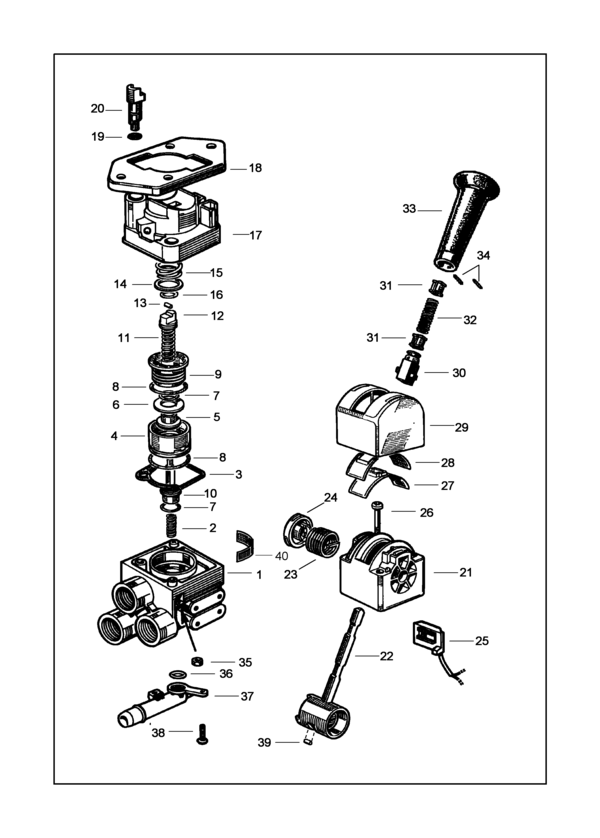

List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Cylindrical compression spring | 1 | 9617230042 | |
| 3 | Gasket | 1 | 9617230042 | |
| 4 | Lower Cartridge | 1 | 9617232014 | |
| 5 | Valve | 1 | ||
| 6 | Washer | 1 | ||
| 7 | O-Ring ISO3601-12x2 | 2 | 9617230042 | 8970700704 |
| 8 | O-Ring ISO3601-28x2,5 | 2 | 9617230042 | |
| 9 | Higher cartridge | 1 | ||
| 10 | Piston | 1 | 9617236204 | |
| 11 | Cylindrical compression spring | 1 | ||
| 12 | Push Rod | 1 | 9617237304 | |
| 13 | Needle roller DIN5402-2x7,8 | 1 | ||
| 14 | Washer | 1 | ||
| 15 | Cylindrical compression spring | 1 | ||
| 16 | O-Ring ISO3601-8x1,5 | 1 | 9617230042 | |
| 17 | Cover | 1 | 9617236524 | |
| 18 | Fixation plate | 1 | ||
| 19 | O-Ring ISO3601-6,4x1,9 | 1 | 9617230042 | |
| 20 | Valve piston | 1 | 9617230042 | |
| 21 | Body Upper part | 1 | 9617230134 | |
| 22 | Cam | 1 | ||
| 23 | Torsion spring | 1 | 8962010714 | |
| 24 | Bracket | 1 | 9617233504 | |
| 25 | Electrical Sub Assembly | 1 | ||
| 26 | Fillister Head Screw | 2 | ||
| 27 | Bonnet | 1 | ||
| 28 | Bonnet | 1 | ||
| 29 | Protection Hood | 1 | ||
| 30 | Stop | 1 | 9617236112 | |
| 31 | Ring | 2 | ||
| 32 | Cylindrical compression spring | 1 | ||
| 33 | Handle | 1 | ||
| 34 | Needle Roller DIN5402-2,18x14,3 | 2 | 9617230042 | 8954100204 |
| 35 | Self locking hexagon nut DIN982-M5x6,3 | 2 | 9617230042 | |
| 36 | O-Ring ISO3601-8,9x1,9 | 1 | 9617230042 | 8970866704 |
| 37 | Exhaust | 1 | 9617232234 | |
| 38 | Fillister head screw ISO14583-M4x20 | 2 | ||
| 39 | Needle | 1 | 8951217514 | |
| 40 | Filter | 1 | 9617230042 |
