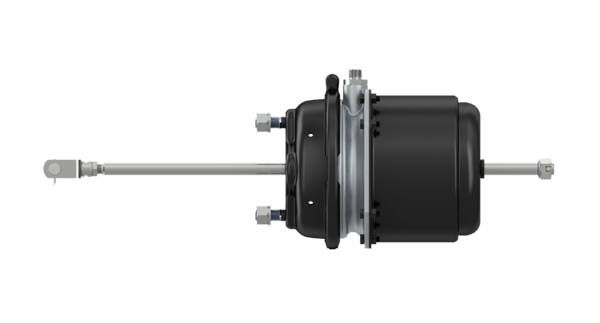

Spring Brake Actuator-Ty 27/30
Vehicle application (India): TATA, Volvo Eicher (VECV)
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9254991030
Gross Unit Price:
0.00
Vehicle application (India): TATA, Volvo Eicher (VECV)
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)41.86
-
Product categoryDevice
-
Technical specificationOE specification
-
GTIN04057875655534
-
Size (mm x mm x mm)670 x 255 x 245
-
UPC193133504962
-
Weight (kg)13
-
Weight (lb)28.66
Doc Type
drawing
Locale
multi
Artical Number
9254991020____053_dascheck_c4_page-1---notset
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
Service & Repair
List of Spare Parts
| 1 | Cylinder cover | 1 | ||
| 2 | Spring Washer DIN6888-16.5x27.4x3.5 | 2 | ||
| 3 | Hexagon nut | 2 | ||
| 4 | Locking nut | 1 | 8919900074 | |
| 5 | Fork | 1 | 9254914202 | |
| 6 | Pin | 1 | 8920100084 | |
| 7 | Splint | 1 | 8105110274 | |
| 8 | DUST SEAL | 1 | ||
| 9 | Hose Clamp | 1 | 4231073504 | |
| 10 | Hexagon Head Screw ISO4017-M8x50 | 1 | 8101263284 | |
| 11 | Hexagon Nut DIN934-M8 | 1 | 8103041114 | |
| 12 | Conical Compression Spring | 1 | 8960500154 | |
| 13 | Piston | 1 | ||
| 14 | Diaphragm | 1 | 9254991152 | |
| 15 | Body _Valve_AM | 1 | ||
| 16 | Ring | 1 | 9254991152 | |
| 17 | Diaphragm | 1 | 9254991152 | |
| 18 | Spring | 1 | 9254991152 | |
| 19 | Valve seat | 1 | 9254991152 | |
| 20 | O-Ring, statical | 2 | 9254991152 | |
| 21 | Lip Seal | 1 | 9254991152 | |
| 22 | Bearing | 1 | 9254991152 | |
| 23 | Flange | 1 | ||
| 24 | Hexagon Head Screw, full thread | 8 | 8912000264 | |
| 25 | Locking nut | 8 | ||
| 26 | O-Ring, Static | 1 | 9254991152 | |
| 27 | Integral Seal | 1 | 9254991152 | |
| 28 | Bearing | 1 | 9254991152 | |
| 29 | Valve | 1 | 9254991152 | |
| 30 | Piston | 1 | ||
| 31 | Rod | 1 | ||
| 32 | Washer | 2 | 9254991152 | |
| 33 | Barrel Spring | 1 | ||
| 34 | Plate | 1 | ||
| 35 | Cylinder Bottom | 1 | ||
| 36 | O-Ring, dynamical | 1 | 9254991152 | |
| 37 | Washer, special type | 1 | 9254991152 | 8951800034 |
| 38 | Nut, special type | 1 | 8919900104 | |
| 39 | PIN | 1 | 9254991152 | |
| 40 | O-Ring, statical | 1 | 9253060142 | |
| 41 | Adapter (mech.) | 1 | ||
| 42 | Spring Retainer | 1 | 4611001192 9253060142 | |
| 43 | Retaining Ring | 1 | 4611001192 9253060142 | 8952266974 |
| 44 | Pressure screw | 1 | 4611001192 | 8932204272 |
| 45 | O-Ring, statical | 1 | 4611001192 9253060142 | |
| 46 | O-Ring, statical | 1 | 4611001192 9253060142 |
