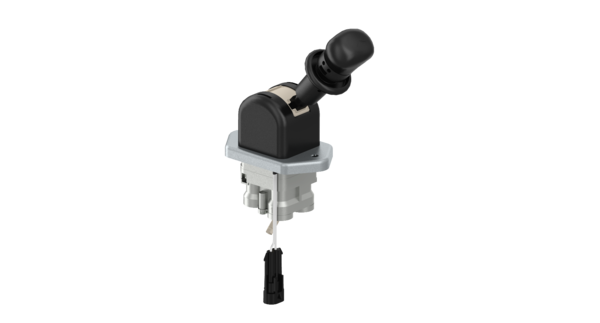

Hand Brake Valve, Parking + Add. Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9617231570
Gross Unit Price:
156.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle73°
-
Calculated Volume (dm³)1.361
-
ColorBlack/Black
-
Distance between holes80 mm
-
ExhaustHose Nozzle Ø 6 mm
-
Max. operating pressure10.0 bar
-
Mounting2x M6
-
Port thread 1M16 x 1.5 JED - 464
-
Port thread 21M16 x 1.5 JED - 464
-
Port thread 22M16 x 1.5 JED - 464
-
Product categoryDevice
-
Rated current500 mA
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage24 V
-
GTIN04057875297543
-
Size (mm x mm x mm)200 x 108 x 63
-
Weight (kg)0.661
Doc Type
drawing
Locale
multi
Artical Number
9617231570____005_dascheck_-5_page-1---notset
Doc Type
service_information
Locale
en
Artical Number
service-information_hbv_961723xxxx_961724xxxx
Service & Repair
List of Spare Parts
| 1 | Body Lower part | 1 | ||
| 2 | O-Ring ISO3601-12x2 | 2 | 8970700704 | |
| 3 | Cylindrical compression spring | 1 | ||
| 4 | Piston | 1 | 9617236204 | |
| 5 | Lower Cartridge | 1 | 9617232014 | |
| 6 | O-Ring ISO3601-28x2,5 | 2 | ||
| 7 | Valve | 1 | ||
| 8 | Washer | 1 | ||
| 9 | Higher Cartridge | 1 | 9617232024 | |
| 10 | Washer | 1 | ||
| 11 | Cylindrical compression spring | 1 | ||
| 12 | Push Rod | 1 | 9617237304 | |
| 13 | O-Ring ISO3601-8x1,5 | 1 | ||
| 14 | Gasket | 1 | ||
| 15 | Body Upper part | 1 | ||
| 16 | Fixation plate | 1 | ||
| 17 | Cam | 1 | ||
| 18 | Torsion spring | 1 | 8962010714 | |
| 19 | Bracket | 1 | 9617233504 | |
| 20 | O-Ring ISO3601-6,4x1,9 | 1 | ||
| 21 | Valve piston | 1 | ||
| 22 | Body Upper part | 1 | 9617230134 | |
| 23 | Fillister Head Screw | 2 | ||
| 24 | Self locking hexagon nut DIN982-M5x6,3 | 2 | ||
| 25 | Bonnet | 1 | 9617234524 | |
| 26 | Bonnet | 1 | 9617234514 | |
| 27 | Protection Hood | 1 | 9617234504 | |
| 28 | Cylindrical compression spring | 1 | ||
| 29 | Sleeve | 1 | ||
| 30 | Needle Roller DIN5402-2,18x14,3 | 2 | 8954100204 | |
| 31 | Cylindrical compression spring | 1 | ||
| 32 | Bush | 1 | ||
| 33 | Actuating lever | 1 | ||
| 34 | Washer | 1 | ||
| 35 | O-Ring ISO3601-5,7x1,9 | 1 | ||
| 36 | Cylindrical compression spring | 1 | ||
| 37 | Valve | 1 | ||
| 38 | O-Ring ISO3601-8,9x1,9 | 1 | 8970866704 | |
| 39 | Exhaust Pipe | 1 | 9617232204 | |
| 40 | Retaining plate | 1 | ||
| 41 | Screw (TORX) | 2 | ||
| 42 | Needle | 1 | 8951217514 | |
| 43 | Needle roller DIN5402-2x7,8 | 1 | ||
| 44 | Cylindrical compression spring | 1 | ||
| 45 | Needle | 2 | 8954100214 | |
| 46 | Electrical Sub-Assembly | 1 | ||
| 47 | ELECTRICAL CONT.PLATE | 1 | ||
| 48 | Case | 1 | ||
| 49 | Sliding Block | 1 |
