Gearbox actuator
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
421355015R
Gross Unit Price:
3716.00
Features and Benefits
-
BrandZF REMAN - WABCO
-
Part typeRemanufactured
-
Calculated Volume (dm³)91.26
-
Electrical connection2 x Baynot
-
Important informationThe Reman GS device is sold without software (empty ECU).To purchase these products directly, a special contract is required.The alternative option is to purchase them via one of our dedicated distributors.
-
Max. operating pressure12.0 bar
-
Port thread 1M16 x 1.5
-
Port thread 2VOSS 203-B Ø 4.0 mm
-
Port thread 31Ø16 mm
-
Port thread 32M10 x 1
-
Port thread 33Flap
-
Product categoryDevice
-
Protection classIP 6K9K
-
Technical specificationOE specification
-
Temperature range-40°C to +95°C
-
TypeZF-AS TRONIC
-
Voltage24 V
-
GTIN04057875331544
-
Size (mm x mm x mm)600 x 390 x 390
-
UPC193133400790
-
Weight (kg)11.38
-
Weight (lb)25.09
Doc Type
drawing
Locale
en
Artical Number
421355015r____005_dascheck_c2_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
81502663
Doc Type
brochure
Locale
nl
Artical Number
wabco_reman_solutions_core_return_guidelines
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
catalog
Locale
hr
Artical Number
wabco_reman_solutions_catalogue_2021_web
Doc Type
poster
Locale
en
Artical Number
82001893
Service & Repair
List of Spare Parts

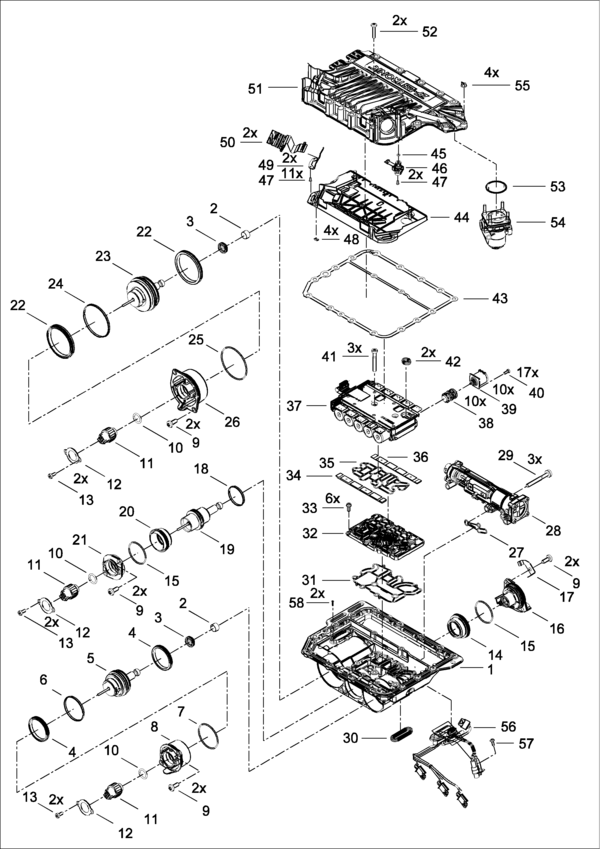

| 1 | Flange | 1 | ||
| 2 | Bushing | 2 | 4213559482 4213559332 | |
| 3 | Radial Oil Seal | 2 | ||
| 4 | Lip seal ring | 2 | 4213559482 4213559332 | |
| 5 | Piston | 1 | ||
| 6 | Guide ring | 1 | 4213559482 4213559332 | |
| 7 | O-Ring ISO3601-59,5x2,5 | 1 | 4213559482 4213559332 | |
| 8 | Cover | 1 | ||
| 9 | Head screw | 8 | 4213559362 | |
| 10 | O-Ring dynamical | 3 | 4213559322 | |
| 11 | Sensor | 3 | 4213559322 | |
| 12 | Sheet | 3 | 4213559322 | |
| 13 | Cheese head screw ISO14580-M6x14 | 6 | 4213559322 | |
| 14 | Stop | 1 | ||
| 15 | O-Ring ISO3601-52x2,5 | 2 | 4213559482 4213559492 4213559362 4213559332 | |
| 16 | Cover | 1 | 4213559362 | |
| 17 | Sheet | 1 | ||
| 18 | Guide ring | 1 | 4213559482 4213559492 4213559332 | |
| 19 | Piston | 1 | 4213559492 | |
| 20 | Stop | 1 | ||
| 21 | Cover | 1 | ||
| 22 | Lip seal ring | 2 | 4213559482 4213559332 | |
| 23 | Piston | 1 | ||
| 24 | Guide ring | 1 | 4213559482 4213559332 | |
| 25 | O-Ring ISO3601-79,3x2,5 | 1 | 4213559482 4213559332 | |
| 26 | Cover | 1 | ||
| 27 | Gasket | 1 | 4213559482 4213559542 4213559362 4213559332 4213559342 4213559562 | |
| 28 | Cylinder | 1 | 4213559342 4213559562 | |
| 29 | Fillister-Head Screw | 3 | 4213559362 4213559562 | |
| 30 | Gasket | 1 | 4213559252 4213559282 | |
| 31 | Sealing | 1 | 4213559472 | |
| 32 | Seat | 1 | ||
| 33 | Cheese Head Screw | 6 | ||
| 34 | Damper | 1 | ||
| 35 | Sealing | 1 | 4213559302 4213559562 4213559472 | |
| 36 | Damper | 1 | ||
| 38 | Valve Unit | 10 | 4213559512 | |
| 39 | Solenoid | 10 | ||
| 40 | Cheese head screw DIN6912-M5x12 | 17 | 4213559512 | |
| 41 | Fillister head screw ISO14583-M8x55 | 3 | 4213559512 4213559302 4213559562 4213559472 | |
| 42 | Gasket | 2 | 4213559302 4213559252 4213559282 | |
| 43 | Gasket | 1 | 4213559282 | |
| 44 | Plate | 1 | ||
| 45 | O-Ring | 1 | ||
| 46 | Pressure Sensor | 1 | ||
| 47 | Fillister head screw | 13 | ||
| 48 | Clip | 4 | 4213559432 | |
| 49 | Spring | 2 | ||
| 50 | Plug | 2 | 4213559432 | |
| 51 | Cover | 1 | ||
| 52 | Screw | 2 | 4213559282 | |
| 53 | O-Ring ISO3601-45x2 | 1 | 4213559312 | |
| 54 | Pressure Limiting Valve | 1 | 4213559312 | |
| 55 | Hexagon nut DIN6923-M6 | 4 | ||
| 56 | Connecting Bridge | 1 | 4213559542 | |
| 57 | Fillister head screw ISO7380-M5x12 | 1 | 4213559362 | |
| 58 | Rivet | 2 |
