Gearbox actuator
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
421355022R
Gross Unit Price:
3716.00
Features and Benefits
-
BrandZF REMAN - WABCO
-
Part typeRemanufactured
-
Calculated Volume (dm³)19.734
-
Electrical connection2 x Baynot
-
Important informationThe Reman GS device is sold without software (empty ECU).To purchase these products directly, a special contract is required.The alternative option is to purchase them via one of our dedicated distributors.
-
Max. operating pressure12.0 bar
-
Port thread 1M16 x 1.5
-
Port thread 2VOSS 203-B Ø 4.0 mm
-
Port thread 31Ø16 mm
-
Port thread 32M10 x 1
-
Port thread 33Flap
-
Product categoryDevice
-
Protection classIP 6K9K
-
Technical specificationOE specification
-
Temperature range-40°C to +95°C
-
TypeZF-AS TRONIC
-
Voltage24 V
-
GTIN04057875159056
-
Size (mm x mm x mm)460 x 260 x 165
-
UPC193133241447
-
Weight (kg)10.02
-
Weight (lb)22.0903
Doc Type
drawing
Locale
multi
Artical Number
421355022r____005_dascheck_d3_page-1---notset
Doc Type
brochure
Locale
en
Artical Number
81502663
Doc Type
brochure
Locale
nl
Artical Number
wabco_reman_solutions_core_return_guidelines
Doc Type
brochure
Locale
en
Artical Number
zf_reman_core_return_guidelines
Doc Type
catalog
Locale
hr
Artical Number
wabco_reman_solutions_catalogue_2021_web
Doc Type
poster
Locale
en
Artical Number
82001893
Service & Repair

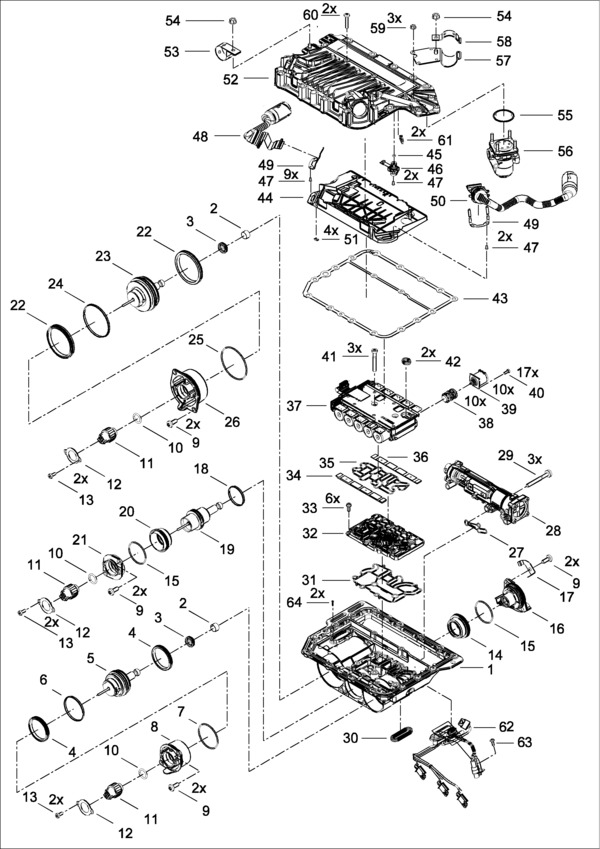

List of Spare Parts
| 1 | Body | 1 | 421355950R | |
| 2 | Bushing | 2 | ||
| 3 | Radial Oil Seal | 2 | ||
| 4 | Lip seal ring | 2 | 421355950R | |
| 5 | Piston | 1 | 421355950R | |
| 6 | Guide ring | 1 | 421355950R | |
| 7 | O-Ring ISO3601-59,5x2,5 | 1 | 421355950R | |
| 8 | Cover | 1 | 421355950R | |
| 9 | Head screw | 8 | 421355950R | |
| 10 | O-Ring dynamical | 3 | ||
| 11 | Distance sensor module | 3 | ||
| 12 | Sheet | 3 | ||
| 13 | Cheese head screw ISO14580-M6x14 | 6 | ||
| 14 | Piston | 1 | 421355950R | |
| 15 | O-Ring ISO3601-52x2,5 | 2 | 421355950R | |
| 16 | Cover | 1 | 421355950R | |
| 17 | Sheet | 1 | 421355950R | |
| 18 | Guide ring | 1 | 421355950R | |
| 19 | Piston | 1 | 421355950R | |
| 20 | Piston | 1 | 421355950R | |
| 21 | Cover | 1 | 421355950R | |
| 22 | Lip seal ring | 2 | 421355950R | |
| 23 | Piston | 1 | 421355950R | |
| 24 | Guide ring | 1 | 421355950R | |
| 25 | O-Ring ISO3601-79,3x2,5 | 1 | 421355950R | |
| 26 | Cover | 1 | 421355950R | |
| 27 | Gasket | 1 | 421355950R | |
| 28 | Gate Cylinder | 1 | ||
| 29 | Fillister-Head Screw | 3 | 421355950R | |
| 30 | Gasket | 1 | 421355950R | |
| 31 | Sealing | 1 | 421355950R | |
| 32 | Seat | 1 | 421355950R | |
| 33 | Cheese Head Screw | 6 | 421355950R | |
| 34 | Damper | 1 | 421355950R | |
| 35 | Sealing | 1 | 421355950R | |
| 36 | Damper | 1 | 421355950R | |
| 37 | Valve Unit | 1 | 421355950R | |
| 38 | Valve Unit | 10 | ||
| 39 | Solenoid Valve | 10 | ||
| 40 | Cheese head screw DIN6912-M5x12 | 17 | ||
| 41 | Fillister head screw ISO14583-M8x55 | 3 | 421355950R | |
| 42 | Gasket | 2 | 421355950R | |
| 43 | Gasket | 1 | 421355950R | |
| 44 | Plate | 1 | ||
| 45 | O-Ring | 1 | ||
| 46 | Pressure Sensor | 1 | ||
| 47 | Fillister head screw | 13 | ||
| 48 | Cable | 1 | ||
| 49 | Spring | 2 | ||
| 50 | Cable | 1 | ||
| 51 | Clip | 4 | ||
| 52 | Cover | 1 | ||
| 53 | Sheet | 1 | ||
| 54 | Hexagon nut DIN6923-M8 | 2 | ||
| 55 | O-Ring ISO3601-45x2 | 1 | ||
| 56 | Pressure Limiting Valve | 1 | ||
| 57 | Sheet | 1 | ||
| 58 | Sheet | 1 | ||
| 59 | Hexagon nut DIN6923-M6 | 4 | ||
| 60 | Screw | 2 | 421355950R | |
| 61 | Fastener | 2 | ||
| 62 | Cable bridge | 1 | 421355950R | |
| 63 | Fillister head screw ISO7380-M5x12 | 1 | 421355950R | |
| 64 | Rivet | 2 | 421355950R |
