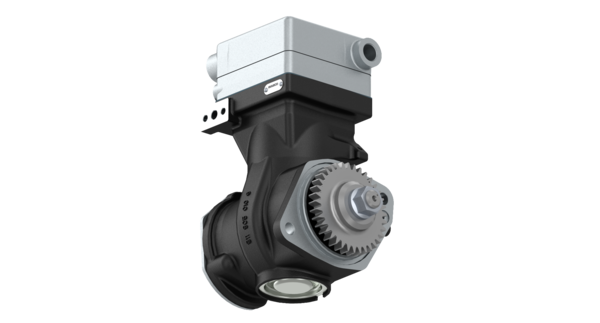

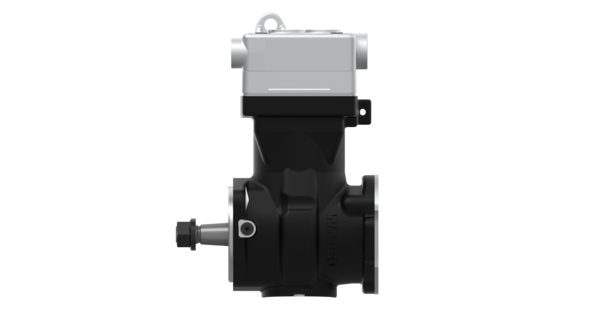

One-Cyl.Compressor 318cc,flangemounted
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9111535540
Gross Unit Price:
0.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)0
-
CoolingWater
-
Crankshaft threadM20 x 1.5
-
LubricationLubrication supplied from engine
-
Max. operating pressure10.0 bar
-
MountingFlange mounting
-
Operating speed3000 (1/min)
-
Piston diameter85.0 mm
-
Piston stroke56 mm
-
Port thread 03/4 - 14 NPTF
-
Port thread 23/4 - 14 NPTF
-
Port thread 4M10 x 1.0
-
Port thread 91/2 - 14 NPTF
-
Port thread 9.11/2" - 14 NPTF
-
Port thread 9.21/2" - 14 NPTF
-
Product categoryDevice
-
Swept volume (cm³)318 cm3
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeSingle Cylinder
-
GTIN04057875374435
-
Weight (kg)0
-
Weight (lb)0
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Repair
List of Spare Parts
| 1 | Crankcase | 1 | ||
| 2 | Connecting rod | 1 | ||
| 3 | Piston | 1 | ||
| 4 | Kit: Piston + Rod | 1 | 9111559262 | |
| 4 | Retaining ring DIN472-19x1 | 2 | ||
| 5 | Kit: Piston + Rod | 1 | 9111559262 | |
| 5 | Wrist Pin | 1 | ||
| 6 | Piston ring | 1 | ||
| 7 | Piston ring | 2 | ||
| 8 | Gasket | 1 | ||
| 9 | Kit: Gasket | 1 | 9121799252 | |
| 9 | Suction leaf | 1 | ||
| 10 | Reed valve | 1 | 9111530504 | |
| 11 | Cylinder cover | 1 | ||
| 12 | Cylindrical compression spring | 1 | ||
| 13 | Piston | 1 | ||
| 14 | O-Ring, dynamical | 2 | ||
| 15 | Stop | 1 | ||
| 16 | Slotted Spring Pin DIN7346-10x24 | 2 | ||
| 17 | Parallel pin | 2 | 8920135644 | |
| 18 | Pressure valve | 1 | ||
| 19 | Cheese Head Screw,special type | 2 | ||
| 20 | Screw | 2 | ||
| 21 | Plate | 1 | 9111531004 | |
| 22 | Gasket | 1 | ||
| 23 | Cover | 1 | 9111556554 | |
| 24 | Ball ISO3290-10 | 1 | 8107010134 | |
| 25 | Compression Spring | 1 | ||
| 26 | Hexagon socket pipe plug DIN908-M12x1,5 | 1 | 8109020104 | |
| 27 | Kit: Gasket | 1 | 9121799252 | |
| 27 | Hexagon Flange Bolt ISO4162-M8x80 | 4 | 8912119994 | |
| 28 | Kit: Gasket | 1 | 9121799252 | |
| 28 | Cheese head screw ISO14580-M6x60 | 1 | ||
| 29 | Wheel Nut DIN74361-M20x1,5LH | 1 | 9121709212 | 8103410034 |
| 30 | Toothed wheel | 1 | ||
| 31 | Bush | 1 | 9111552004 | |
| 32 | Crankshaft | 1 | 9111556954 | |
| 33 | O-Ring ISO3601-84,0x3 | 1 | 9121709212 | 8970731534 |
| 34 | Flange | 1 | 9111536074 | |
| 35 | Countersunk head screw DIN966-M5x12 | 2 | 9121709212 | 8101390014 |
| 36 | Connecting Rod | 1 | ||
| 37 | Cheese Head Screw ISO14580-M6x35 | 2 | 8912019294 | |
| 37 | Kit: Piston + Rod | 1 | 9111559262 | |
| 38 | Cap | 1 | 8950735894 | |
| 38 | Kit: Piston + Rod | 1 | 9111559262 | |
| 39 | Sealing ring DIN7603-A10x14 | 1 | 8114010274 | |
| 40 | Hexagon socket pipe plug DIN908-M10x1 | 1 |
