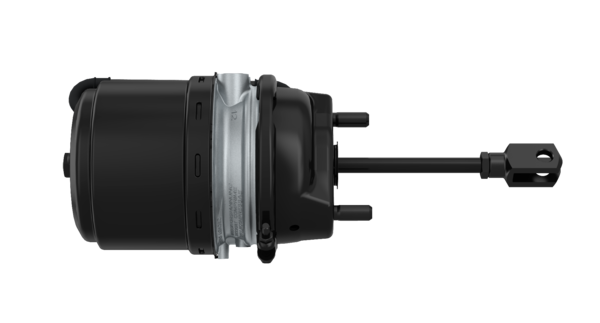

Tristop-Cylinder Cam G-24/24 F
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9254310380
Gross Unit Price:
744.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Bolt lengths38.5 mm
-
Bolt threadsM16 x 1.5
-
Calculated Volume (dm³)0
-
Clevis pins16 mm
-
Distance between bolts120.6 mm
-
Max. operating pressure10.5/8.5 bar
-
Output force 38800 N
-
Output force m7600 N
-
Port thread 11M16 x 1.5
-
Port threadsM16 x 1.5
-
Product categoryDevice
-
Push-rod length215 mm
-
Push-rod threadM16 x 1.5
-
Release pressure4.9 bar
-
Return-spring force250 N
-
Stroke65/65 mm
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total length275.0 mm
-
Type24/24
-
Type of operationCam
-
VersionWithout boot
-
YokeScrewed: 895 802 090 4
-
GTIN7895851032767
-
UPC193133352068
-
Weight (kg)9.235
-
Weight (lb)20.36
Replaces
-
DAF1518309
-
SCANIA1446045
Doc Type
drawing
Locale
multi
Artical Number
9254310390____053_dascheck_g21_page-1---notset
Doc Type
installation_instruction
Locale
multi
Artical Number
doc000132ml
Service & Repair
List of Spare Parts
| 1 | Yoke NULL-M16x1,5 | 1 | 8958020904 | |
| 2 | Hexagon Thin Nut DIN439-2-BM16x1,5 | 1 | 8103190294 | |
| 3 | Non pressure chamber | 1 | ||
| 4 | Plain Washer | 1 | 9254310082 | 8950930054 |
| 5 | Flange | 1 | 4231066034 | |
| 6 | Conical Compression Spring | 1 | 8960528904 | |
| 7 | Cover | 1 | 8950712604 | |
| 8 | Clamp Ring 24 | 1 | 4231063504 | |
| 9 | Hexagon Nut DIN934-M8 | 1 | 8103041114 | |
| 10 | Hexagon Head Screw ISO4017-M8x50 | 1 | 8101263284 | |
| 11 | Piston | 1 | ||
| 12 | Diaphragm 24 | 1 | 9254310082 | 8971205364 |
| 13 | Plug | 1 | 9254310082 | |
| 14 | Hose nozzle | 1 | 9254310082 | 8931294174 |
| 15 | Sintered stainless steel filter | 1 | 9254310082 | 8993812844 |
| 16 | Pipe | 1 | ||
| 17 | Guide ring | 1 | ||
| 18 | Tapping Screw M6x12 | 1 | ||
| 19 | Flange | 1 | ||
| 20 | O-Ring ISO3601-155x4,5 | 1 | ||
| 21 | Grooved Lip Seal | 1 | 8971616074 | |
| 22 | Piston | 1 | 9255616282 | |
| 23 | Barrel Power Spring 24 | 1 | 8960801834 | |
| 24 | Cylinder | 1 | ||
| 25 | Plug | 1 | ||
| 26 | Hose nozzle | 1 | 8931294174 | |
| 27 | O-Ring ISO3601-15x2 | 1 | 8977702504 | |
| 28 | Thrust washer | 1 | 8930301704 | |
| 29 | Slotted spring pin ISO8748-5x22 | 1 | ||
| 30 | Hexagon Nut DIN934-M16x1,5 | 1 | 8103040314 |
