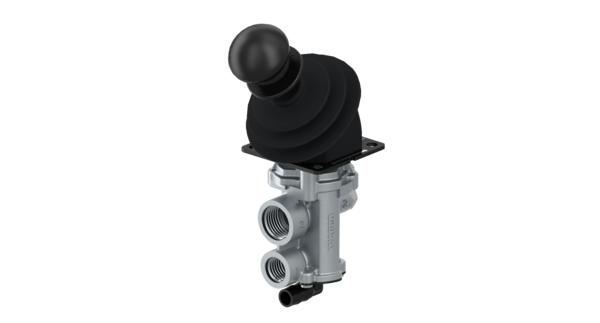

Hand Brake Valve, Truck
Vehicle application (India): Swaraj Mazda
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9611700750
Gross Unit Price:
0.00
Vehicle application (India): Swaraj Mazda
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Actuation angle73°
-
Calculated Volume (dm³)1.747
-
Distance between holes75x75 mm
-
ExhaustHose Nozzle Ø 12 mm
-
Max. operating pressure13.0 bar
-
Mounting4x Ø 7 mm
-
Port thread 1M16 x 1.5
-
Port thread 21M22 x 1.5
-
Product categoryDevice
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
GTIN04057875601692
-
Size (mm x mm x mm)106 x 82 x 201
-
Weight (kg)0.55
-
Weight (lb)1.213
