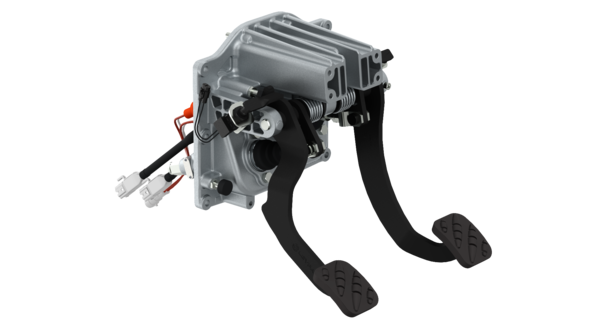

Pedal Unit
Vehicle application (India): Ashok Leyland
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9650012100
Gross Unit Price:
0.00
Vehicle application (India): Ashok Leyland
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)53.8
-
Product categoryDevice
-
Technical specificationOE specification
-
GTIN04057885051975
-
Size (mm x mm x mm)316 x 448 x 380
-
UPC193133532873
-
Weight (kg)8.7
-
Weight (lb)19.18
Doc Type
drawing
Locale
en
Artical Number
9650012100____005_dascheck_f7_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Housing machining | 1 | ||
| 2 | Hexagon Nut ISO 4035 - M8 | 3 | 9650019762 | |
| 3 | Stop | 1 | 9650019762 | |
| 4 | Screw | 2 | 9650019762 | |
| 5 | Pedal -surface protection | 1 | ||
| 6 | Plain bearing | 4 | 9650019762 | |
| 7 | Torsion spring - Brake | 1 | 9650019762 | |
| 8 | Spring Seat | 1 | ||
| 9 | Pedal - Surface protection | 1 | ||
| 10 | Spring Guide - Clutch | 1 | ||
| 11 | Torsion Spring - Clutch | 1 | 9650019762 | |
| 12 | Tube Bush | 2 | 9650019762 | |
| 13 | Pedal | 2 | 9650019762 | |
| 14 | Split Pin 3,2x25 | 2 | ||
| 15 | Cover | 2 | 9650019762 | |
| 16 | Shaft | 1 | ||
| 17 | Cheese Head Screw M6x20 | 1 | 9650019762 | |
| 18 | Gasket | 1 | 9650019762 | |
| 19 | Gasket | 1 | 9650019762 | |
| 20 | Cover | 1 | ||
| 21 | Filter | 1 | ||
| 22 | Wire clip | 1 | ||
| 23 | Exhauster | 1 | 100632760 | |
| 24 | O-Ring, dynamical | 1 | 4611001042 | |
| 25 | Filter | 2 | 4611001042 | |
| 26 | O-Ring, dynamical | 2 | 4611001042 | |
| 27 | Piston | 1 | 100610320 | |
| 28 | O-Ring, statical | 2 | 4611001042 | |
| 29 | O-Ring, dynamical ISO3601-25.07x2.62 | 2 | 4611001042 | |
| 30 | O-Ring, dynamical ISO3601-15.55X2.62 | 2 | 4611001042 | |
| 31 | Spring | 2 | 4611001042 | 100632780 |
| 32 | Valve | 2 | 4611001042 | |
| 33 | Hexagon Head Screw | 4 | ||
| 34 | Body | 1 | ||
| 35 | Spring Retainer | 4 | 4611001042 4611001192 | |
| 36 | Retaining Ring | 4 | 4611001042 4611001192 | 8952266974 |
| 37 | Pressure screw | 4 | 4611001192 | 8932204272 |
| 38 | Wire clip | 1 | ||
| 39 | O-Ring, statical | 1 | 4611001042 | |
| 40 | Body Upper | 1 | ||
| 41 | Spring | 1 | 100630230 | |
| 42 | Piston | 1 | 100630162 | |
| 43 | Guide ring | 2 | 4611001042 | |
| 44 | O-Ring, dynamical | 1 | 4611001042 | |
| 45 | Rubber spring | 1 | 4611001042 | |
| 46 | Spring washer | 1 | 4611001042 | |
| 47 | Plunger | 1 | 100630190 | |
| 48 | Spacer | 1 | 100630240 | |
| 49 | Retaining ring DIN472-45x1,75 | 1 | ||
| 50 | Protection Hood | 1 | 4611001042 | |
| 51 | Retaining Ring | 1 | 8952212104 | |
| 52 | Baseplate | 1 | ||
| 53 | Countersunk Head Screw M4x16 | 2 | ||
| 54 | Protection Hood | 1 | 4611001042 | 100631610 |
| 55 | Support | 1 | ||
| 56 | Plunger | 1 | ||
| 57 | Hexagon Nut M10 | 2 | 4700539262 | |
| 58 | Yoke | 2 | 4700539262 | |
| 59 | O-Ring, dynamical ISO3601-12.37x2.62 | 2 | 9650019762 | |
| 60 | Washer 14,2x22,1x2,6 | 2 | 9650019762 | |
| 61 | Stop-Light Switch | 2 | 9650019762 | |
| 62 | Wiring Harness IPU - Pigtail | 1 | 9650019762 | |
| 63 | Pressure Sensor Module | 1 | ||
| 64 | Gaskets for oval flange | 1 | 9650019762 | |
| 65 | Pushrod | 1 | 4700539262 | |
| 66 | Rubber_Boot | 1 | 4700539262 | |
| 67 | Retaining ring DIN472-28x1,2 | 1 | ||
| 68 | Washer | 1 | ||
| 69 | Hanger | 2 | ||
| 70 | Piston | 1 | ||
| 71 | Lip Seal | 2 | ||
| 72 | Valves | 1 | ||
| 73 | Spring guide | 1 | ||
| 74 | Spring, general | 1 | ||
| 75 | Cylinder Machining | 1 | ||
| 76 | O-Ring ISO3601-13x1,5 | 1 | 9650019762 | 8970729644 |
| 77 | Adapter (mech.) Push to fit | 1 | 9650019762 | |
| 78 | Retaining Ring | 1 | 9650019762 | 8952267304 |
| 79 | Gasket | 1 | ||
| 80 | Pan-Head Screw With Flange M4x10 | 2 | ||
| 81 | Adaptor | 1 | ||
| 82 | Hexagon Head Screw ISO4017 M5x10 | 4 | ||
| 83 | Bracket - clutch switch | 1 | 9650019762 | |
| 84 | Switch | 1 | ||
| 85 | Bracket - brake switch | 1 | 9650019762 | |
| 86 | Stop light switch | 1 | 4410060140 | |
| 87 | Hexagon Head Screw ISO4017 M8x25 | 2 | 9650019762 | |
| 88 | Hexagon Head Screw | 4 | ||
| 89 | O-Ring, statical | 1 | 4611001042 4611001192 | |
| 90 | O-Ring, statical | 1 | 4611001042 4611001192 | |
| 91 | O-Ring, statical | 4 | 4611001042 | |
| 92 | O-Ring, statical | 2 | 9650019762 | |
| 93 | Stud | 3 |
