Foot Brake Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
PRO3150080
Gross Unit Price:
104.00
Features and Benefits
-
BrandProVia
-
Part typeReliable spare parts
-
Basic valve4619025584
-
Calculated Volume (dm³)3.24
-
Distance between holes61x61 mm
-
ExhaustHose nipple (90°)
-
Max. operating pressure10.0 bar
-
Max. temporarily pressure12.0 bar
-
Mounting4x Ø 9.0 mm
-
Operating pressure10.0 bar
-
Port thread 11M16 x 1.5
-
Port thread 12M16 x 1.5
-
Port thread 21M16 x 1.5
-
Port thread 22M16 x 1.5
-
PortsM16 × 1.5
-
Predominance0.30 bar
-
ProVia warranty1 year
-
Product categoryDevice
-
Technical specificationAM specification
-
Temperature range-40°C to +80°C
-
GTIN04057877003241
-
Size (mm x mm x mm)190 x 110 x 155
-
UPC193134005048
-
Weight (kg)1.181
-
Weight (lb)2.604
Replaces
-
ASHOK LEYLAND225968
-
ASHOK LEYLANDZ442145010087
-
DAF1504928R
-
DAF1518060
-
ERF1128613
-
ERF1471905
-
EVOBUSA0014318305
-
EVOBUSA00143183050080
-
FAUN1617213
-
FAUN99708458694
-
FORD1C442A270A1A
-
HYUNDAIB587105K200
-
IRISBUS4783981
-
IVECO4783981
-
IVECO04783981
-
IVECO4841006
-
IVECOEN934967
-
KIAB587105K200
-
LEYLAND DAF68409
-
LEYLAND DAFBBU6441
-
LIEBHERR5029929
-
LIEBHERR502992908
-
LIEBHERR502992977
-
LIEBHERR5029929R
-
MAFI0005660504
-
MAFI5660504
-
MAN8550001-4354
-
MAN1128613REPLACED
-
MAN4613150087
-
MAN85500014354
-
MAN85500014697
-
MAN99100360073
-
MERCEDES-BENZA0014318305
-
MERCEDES-BENZ00143183050080
-
MERCEDES-BENZ001431830580
-
MERCEDES-BENZ0014318905
-
MERCEDES-BENZ0014319105
-
MERCEDES-BENZ0014319905
-
MERCEDES-BENZ0024312705
-
MERCEDES-BENZ3454317105
-
MERCEDES-BENZA00143183050080
-
PACCAR1504928R
-
RENAULT5021170165
-
SCANIA1314047
-
SCANIA354611
-
SCHWARZMÜLLER10875
-
STEYR79200360035
-
STEYR79200360036
-
STEYR99100360073
-
STEYR99100360907
-
TATAZ442145010087
-
VOLVO6996123
Doc Type
drawing
Locale
en
Artical Number
pro3150080____005_dascheck_b5_page-1---notset
Service & Repair

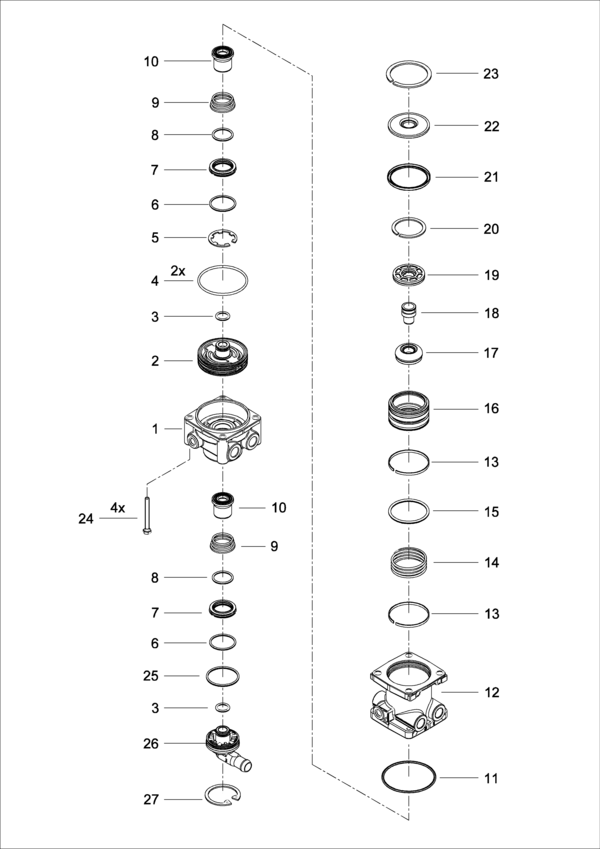

List of Spare Parts
| 1 | Body | 1 | 4619025584 | |
| 2 | Piston | 1 | ||
| 3 | O-Ring ISO3601-15,55x2,62 | 2 | 8970862004 | |
| 4 | O-Ring, Dynamic _AM | 2 | ||
| 5 | Retaining ring DIN984-JK38x1,5 | 1 | ||
| 6 | O-Ring ISO3601-32x2,5 | 2 | 8977705804 | |
| 7 | Spacer | 2 | 4613152612 | |
| 8 | O-Ring ISO3601-25,07x2,62 | 2 | 8970868304 | |
| 9 | Conical Spring | 2 | ||
| 10 | Valve | 2 | 8995070582 | |
| 11 | O-Ring ISO3601-71,12x2,62 | 1 | 8977868004 | |
| 12 | Body | 1 | ||
| 13 | Guide ring | 2 | ||
| 14 | Cylindrical Compression Spring | 1 | 8960311904 | |
| 15 | O-Ring ISO3601-50,4x3,53 | 1 | 8970867304 | |
| 16 | Piston | 1 | ||
| 17 | Rubber spring | 1 | 8961300504 | |
| 18 | Plunger | 1 | 4613157714 | |
| 19 | Spring washer | 1 | 4613152594 | |
| 20 | Retaining ring DIN472-45x1,75 | 1 | ||
| 21 | Spacer | 1 | 8996217804 | |
| 22 | Boot | 1 | ||
| 23 | Retaining Ring | 1 | 8952212104 | |
| 24 | Hexagon head screw ISO4017-M6x55 | 4 | ||
| 25 | O-Ring ISO3601-40,95x2,62 | 1 | 8977860304 | |
| 26 | Exhauster | 1 | 4619012234 | |
| 27 | Retaining ring DIN472-47x1,75 | 1 | 8105180544 |
