LSV Relay - mechanical
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4757100240
Gross Unit Price:
555.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Break point0.5 bar
-
Calculated Volume (dm³)3.518
-
Control pressureMax 10 bar
-
Control stroke0° to +34°30'
-
Distance between bolts84x84 mm
-
ExhaustSnap-on contour
-
Max. operating pressure10.0 bar
-
Mounting4x M8
-
Port thread 1M22 x 1.5
-
Port thread 2M16 x 1.5
-
Port thread 4M16 x 1.5
-
Product categoryDevice
-
Regulating ratio1:8
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Total stroke-40° to +110°
-
TypeMechanical
-
Type of operationRelay Valve
-
GTIN7895851062665
-
Size (mm x mm x mm)227 x 123 x 126
-
UPC193133483342
-
Weight (kg)1.621
-
Weight (lb)3.5737
Replaces
-
BEDFORD91137094
-
DAF1518122
-
IRISBUS4822162
-
IVECO04822162
-
IVECO04746013
-
IVECO04758659
-
IVECO04761396
-
IVECO04771456
-
IVECO04824348
-
IVECO42125561
-
IVECO4822162
-
IVECO115131
-
IVECO4758659
-
IVECO4771456
-
IVECO4824348
-
RENAULT5430032079
Doc Type
brochure
Locale
de
Artical Number
4757109593
Service & Repair

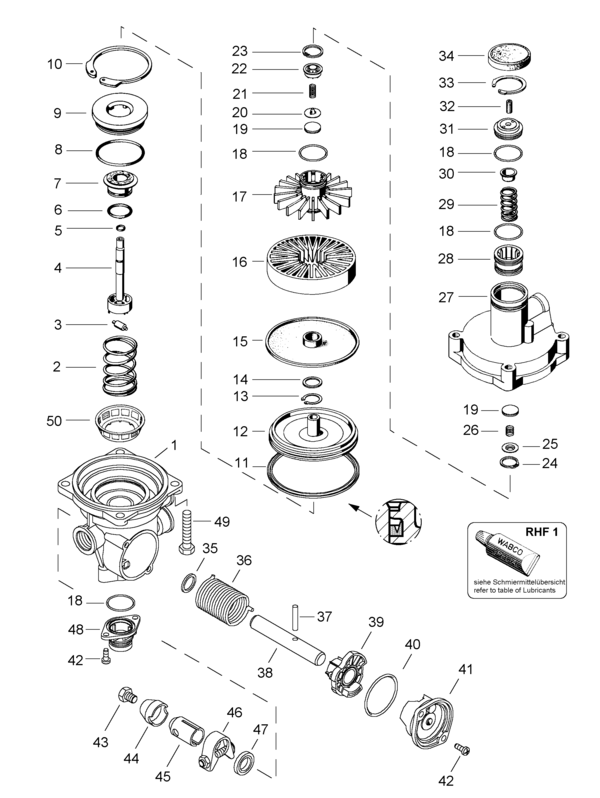

List of Spare Parts
| 1 | Body Lower part | 1 | ||
| 2 | Roller | 1 | 4757101304 | |
| 3 | Plunger | 1 | 4757107704 | |
| 4 | O-Ring ISO3601-4,3x2,4 | 1 | 4757100012 4757100022 | 8970803004 |
| 5 | O-Ring ISO3601-18,3x2,4 | 1 | 4757100012 4757100022 | 8970805304 |
| 6 | Cylindrical compression spring | 1 | 8965130704 | |
| 7 | Valve | 1 | 4757100012 4757100022 | 8995058422 |
| 8 | O-Ring ISO3601-49,50x3 | 1 | 4757100012 4757100022 | 8977726264 |
| 9 | Valve seat | 1 | 4757101434 | |
| 10 | Lip seal ring | 1 | 4757100012 4757100022 | |
| 11 | Piston | 1 | 4757106284 | |
| 12 | Retaining ring DIN472-JV55x2 | 1 | ||
| 13 | Retaining ring DIN471-A17x1 | 1 | 4757100012 4757100022 | |
| 14 | Ring | 1 | ||
| 15 | Diaphragm 500 | 1 | 4757100012 4757100022 | |
| 16 | Inlet ring | 1 | ||
| 17 | Cap | 1 | ||
| 18 | Piston | 1 | ||
| 19 | Valve | 2 | 4757100012 4757100022 | 8995058304 |
| 20 | Cylindrical compression spring | 1 | 4757100012 | |
| 21 | Cap | 1 | 4757100012 | 4757100424 |
| 22 | O-Ring ISO3601-27,3x2,4 | 4 | 4757100012 4757100022 | 8970803704 |
| 23 | Retaining ring DIN472-17x1 | 1 | 4757100012 4757100022 | |
| 24 | Retaining Ring DIN472-20x1 | 1 | 4757100012 | 8105180124 |
| 25 | Cap | 1 | ||
| 26 | Cylindrical compression spring | 1 | 4757100012 4757100022 | |
| 27 | Body Upper part | 1 | 4757100174 | |
| 28 | Piston | 1 | ||
| 29 | Cylindrical compression spring | 1 | 8965116904 | |
| 30 | Cap | 1 | ||
| 31 | Hex socket set screw DIN914-M5x12 | 1 | ||
| 32 | Piston | 1 | 4757106274 | |
| 33 | Protection Cap | 1 | 8980113504 | |
| 34 | Washer | 1 | 4757100012 | |
| 35 | Shaft Pedal | 1 | 4757106904 | |
| 36 | Grooved pin DIN1473-4x24 | 1 | 8105050634 | |
| 37 | Torsion spring | 1 | ||
| 38 | Eccentric/cam | 1 | 4757100834 | |
| 39 | O-Ring ISO3601-47,29x2,62 | 1 | 4757100012 4757100022 | 8977868404 |
| 40 | Cover | 1 | ||
| 41 | Fillister head screw ISO7045-M6x14 | 4 | 8912116404 | |
| 42 | Venting Guide | 1 | 9730022224 | |
| 43 | Tubular rivet | 1 | ||
| 44 | Valve Washer | 1 | 4757100012 | 8970179604 |
| 45 | Cap | 1 | 8950720304 | |
| 46 | Bronze Bushing | 1 | 4757100012 4757100022 | 8997700304 |
| 47 | Radial Seal | 1 | 4757100012 4757100022 | 8972080114 |
| 48 | Clamping piece | 1 | ||
| 49 | Cap | 1 | 4757100414 | |
| 50 | Cap | 1 | 8950712314 | |
| 51 | Hexagon head screw ISO4017-M8x10 | 1 | 8101260554 | |
| 52 | Grooved pin ISO8745-3x22 | 1 | ||
| 53 | Hexagon head screw ISO4017-M8x55 | 4 | 8101260714 | |
| 54 | Tubular Rivet | 2 | 8105400014 | |
| 55 | Filter | 1 | 8993811812 |
