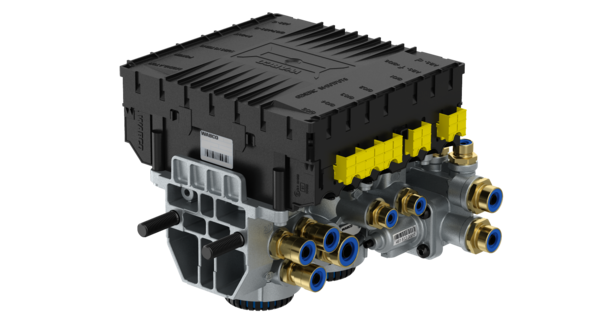

EBS-Trailer Modulator 24V
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4801020330
Gross Unit Price:
2341.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)11.53
-
Distance between bolts70 mm
-
Max. operating pressure8.5 bar
-
Mounting2x M12
-
Port thread 115 x 1.5 / 8 x 1
-
Port thread 1112 x 1.5 / 8 x 1
-
Port thread 2112 x 1.5
-
Port thread 2212 x 1.5
-
Port thread 238 x 1
-
Port thread 248 x 1
-
Port thread 32 Integrated Silencer
-
Port thread 48 x 1
-
Port thread 428 x 1
-
Port thread 58 x 1
-
Product categoryDevice
-
Protection classIP 6K9K
-
System2S/2M
-
Technical specificationOE specification
-
Temperature range-40°C to +65°C
-
TypeStandard
-
VersionTEBS E with PEM
-
Voltage24 V
-
GTIN04057875228691
-
Size (mm x mm x mm)224 x 260 x 198
-
UPC193133317166
-
Weight (kg)6.195
-
Weight (lb)13.66
Replaces
-
DAF0906315
-
FAYMONVILLE191656
-
KRONE515017225
-
KÄSSBOHRER21150110177
-
OTOKARAIF2005
-
SCANIA2090388
-
SCHMITZ CARGOBULL1042742
-
SCHMITZ CARGOBULL1124337
-
SCHMITZ CARGOBULL1161208
-
SCHWARZMÜLLER80330
-
TIRSAN21150110177
-
VAN HOOL11065751
-
VOLVOWA4801020330
Doc Type
drawing
Locale
multi
Artical Number
4801020330____005_dascheck_j3_page-1---notset
Doc Type
info
Locale
de
Artical Number
e1-xx4868_076
Doc Type
installation_instruction
Locale
multi
Artical Number
8159801833
Doc Type
market_information
Locale
en
Artical Number
10050
Doc Type
service_information
Locale
en
Artical Number
doc_000133
Doc Type
service_information
Locale
en
Artical Number
8
Service & Repair

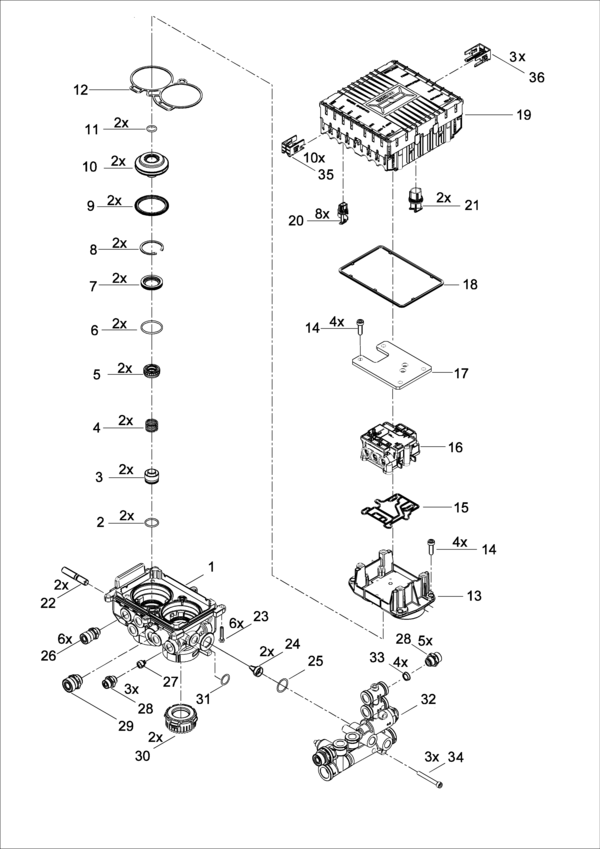

List of Spare Parts
| 1 | Body | 1 | ||
| 2 | O-Ring ISO3601-21,3x2,4 | 2 | 4801029352 | 8977728174 |
| 3 | Guide | 2 | 4801029352 | |
| 4 | Cylindrical Compression Spring | 2 | 4801029352 | 8965168154 |
| 5 | Valve body | 2 | 4801029352 | |
| 6 | O-Ring ISO3601-37,77x2,62 | 2 | 4801029352 | 8977862704 |
| 7 | Valve seat | 2 | 4801029352 | |
| 8 | Retaining ring DIN472-42x1,75 | 2 | 4801029352 | |
| 9 | Sealing | 2 | 4801029352 | |
| 10 | Piston | 2 | 4801029352 | |
| 11 | O-Ring ISO3601-15,3x2,4 | 2 | 4801029352 | 8970800404 |
| 12 | Sealing | 1 | 4801029352 | |
| 13 | Body | 1 | ||
| 14 | Cheese head screw ISO14580-M8x25 | 8 | 4801029352 | |
| 15 | Sealing | 1 | ||
| 16 | Separate ECU | 1 | ||
| 17 | Bracket | 1 | ||
| 18 | Sealing | 1 | 4801029352 | |
| 19 | 1 | |||
| 20 | Protection Cap | 8 | 8980204622 | |
| 21 | Protection Cap | 2 | 8980204632 | |
| 22 | Stud NULL-M12x1,5 | 2 | ||
| 23 | Schraube | 6 | 4801029352 | |
| 24 | Filter | 2 | 4802049212 | 4801022202 |
| 25 | O-Ring ISO3601-24x2 | 1 | 8970866804 | |
| 26 | Push-in fitting | 6 | 4801029332 | 8938000022 |
| 27 | Filter | 1 | ||
| 28 | Screw-in Fitting | 8 | 4801029332 | 8938000012 |
| 29 | Push-in fitting | 1 | 4801029332 | 8938000042 |
| 30 | Silencer | 2 | 4324070272 | |
| 31 | O-Ring ISO3601-18x2 | 1 | 8970815204 | |
| 32 | PEM (Pneumatic Extension Module) | 1 | 4615130000 | |
| 33 | Strainer | 4 | 4802049212 | 8993602604 |
| 34 | Cheese head screw ISO4762-M6x50 | 3 | 4801029312 | 8101203064 |
| 35 | Locking Clip | 10 | 4801029312 | |
| 36 | Locking Clip | 3 |
