Twin Cylinder Compressor

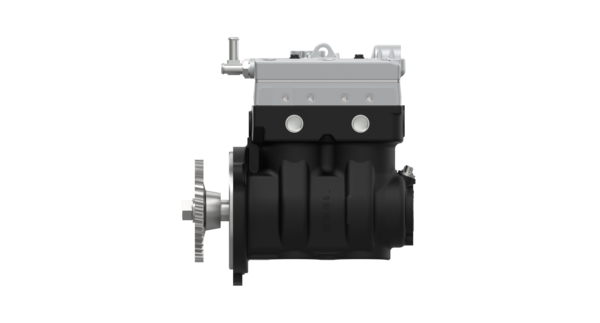

Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9125630040
Gross Unit Price:
890.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)21.3
-
CoolingWater
-
Crankshaft threadM20 x 1.5
-
LubricationLubrication supplied from engine
-
Max. operating pressure14.0 bar
-
MountingFlange mounting
-
Operating speed3000 (1/min)
-
Piston diameter85.0 mm
-
Piston stroke56 mm
-
Port thread 0Ø 34.9 mm
-
Port thread 2M26 x 1.5
-
Port thread 4M16 x 1.5
-
Port thread 8.1M12 x 1.5
-
Port thread 9Ø 16.0 mm
-
Port thread 9.1Ø 16.0 mm
-
Port thread 9.2Ø 16.0 mm
-
Product categoryDevice
-
Swept volume (cm³)636 cm3
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
TypeTwin Cylinder
-
GTIN04057875617655
-
Size (mm x mm x mm)327.8 x 185.9 x 349.5
-
UPC193133020424
-
Weight (kg)22.8
-
Weight (lb)50.27
Replaces
-
DONGFENG3509910
Doc Type
drawing
Locale
multi
Artical Number
9125630040____005_dascheck_g4_page-1---notset
Doc Type
repair_test_instructions
Locale
en
Artical Number
91200095
Service & Repair
List of Spare Parts
| 1 | Crankcase | 1 | ||
| 2 | Bushing | 1 | ||
| 3 | Cover | 1 | 8950723004 | |
| 4 | Crankshaft | 1 | ||
| 5 | Adapter | 1 | ||
| 6 | Snap Ring | 1 | ||
| 7 | Gear | 1 | ||
| 8 | Wheel Nut DIN74361-B20 | 1 | 8103410014 | |
| 9 | Connecting Rod Bottom | 2 | ||
| 10 | Cheese Head Screw ISO14580-M6x35 | 4 | 8912019294 | |
| 11 | Cap | 2 | 9125120362 | 8950735894 |
| 12 | Connecting Rod Top | 2 | 9125120362 | |
| 13 | Piston | 2 | 9125120362 | |
| 14 | Wrist Pin | 2 | 9125120362 | |
| 15 | Retaining ring DIN472-19x1 | 4 | 9125120362 | |
| 16 | Piston ring | 2 | 9125120362 | |
| 17 | Piston ring | 2 | 9125120362 | |
| 18 | Piston ring | 2 | 9125120362 | |
| 19 | Suction Valve | 1 | 9125120372 9125129442 | |
| 20 | Parallel Pin | 4 | ||
| 21 | Slotted Spring Pin DIN7346-10x24 | 2 | ||
| 22 | Reed valve | 2 | 9125120372 | |
| 23 | Cylinder cover | 1 | ||
| 24 | Guide | 2 | ||
| 25 | Cylindrical Compression Spring | 2 | ||
| 26 | O-Ring ISO3601-8,13x1,78 | 2 | 8970729484 | |
| 27 | Piston | 2 | ||
| 28 | O-Ring ISO3601-9,75x1,78 | 2 | ||
| 29 | Screw plug | 2 | 8931847154 | |
| 30 | Pressure valve | 2 | 9125120372 | |
| 31 | Cheese Head Screw,special type | 4 | 9125120372 | |
| 32 | Gasket | 1 | 9125120372 9125129442 | |
| 33 | Sheet | 1 | ||
| 34 | Gasket | 1 | 9125120372 9125129442 | |
| 35 | Cylinder head | 1 | ||
| 36 | Hexagon Flange Bolt ISO4162-M8x80 | 6 | 9125120372 9125129442 | 8912119994 |
| 37 | Screw | 2 | 9125120372 9125129442 | |
| 38 | Hexagon nut | 1 | ||
| 39 | Water Outlet Fitting | 1 | ||
| 40 | Water Inlet Fitting | 1 | ||
| 41 | O-Ring | 1 | ||
| 42 | Oil Inlet Fitting | 1 | ||
| 43 | Hexagon flange bolt DIN6921-M8x18 | 1 | 8912120074 |
