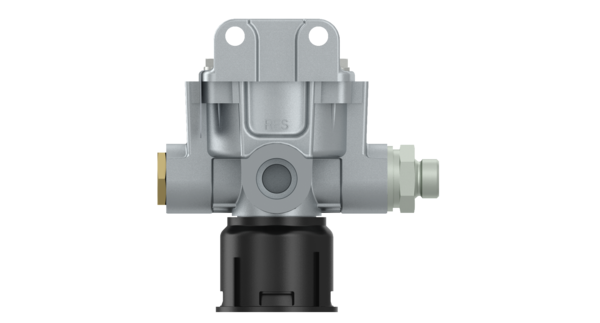

Relay valve, RG2
Vehicle application (India): TATA
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
9732980970
Gross Unit Price:
0.00
Vehicle application (India): TATA
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)0
-
ExhaustSnap on contour JED - 463
-
Max. operating pressure10.0 bar
-
Mounting2x Ø 8.8 mm
-
Opening pressure0.27 bar
-
Port thread 1M22 x 1.5
-
Port thread 2M22 x 1.5
-
Port thread 4M16 x 1.5
-
Predominance0.40 bar
-
Product categoryDevice
-
Regulating ratio1:1
-
Silencer9732985342
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
VersionPressure reduction
-
GTIN04057875304272
-
UPC193133378464
-
Weight (kg)0.886
-
Weight (lb)1.95
Doc Type
drawing
Locale
en
Artical Number
9732980970____005_dascheck_c7_page-1---notset
Doc Type
drawing
Locale
en
Artical Number
9732980180____005_dascheck_d5_page-1---notset
Service & Repair
List of Spare Parts
| 1 | Hexagon Head Screw, special | 4 | ||
| 2 | Spring washer | 4 | 8950100464 | |
| 3 | Cover | 1 | 9739090124 | |
| 4 | Spring Retainer | 1 | ||
| 5 | Retaining Ring | 1 | 8952267064 | |
| 6 | Male Nut | 1 | 8932204282 | |
| 7 | O-Ring, dynamical | 1 | ||
| 8 | Piston | 1 | ||
| 9 | O-Ring, dynamical | 1 | ||
| 10 | Body | 1 | ||
| 11 | Spring Retainer | 2 | ||
| 12 | Retaining Ring | 2 | 8952266974 | |
| 13 | Pressure screw | 2 | 8932204272 | |
| 14 | Washer, special type | 1 | 8951800024 | |
| 15 | O-Ring, statical | 1 | 8979802304 | |
| 16 | Adapter | 1 | ||
| 17 | Valve | 1 | ||
| 18 | Valve guide | 1 | ||
| 19 | Compression Spring, special | 1 | ||
| 20 | Filter | 1 | ||
| 21 | O-Ring, dynamical | 1 | ||
| 22 | O-Ring, dynamical | 1 | ||
| 23 | Retainer Ring | 1 | ||
| 24 | Retainer Ring | 1 | ||
| 25 | Silencer | 1 |
