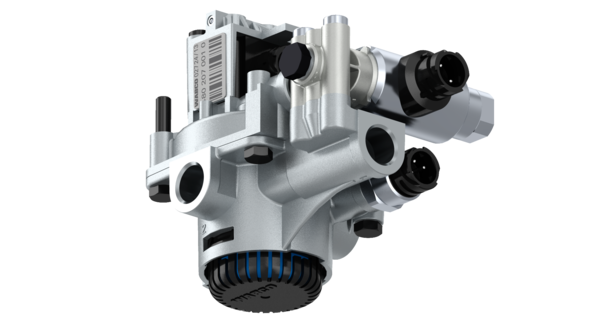

EBS-Relay Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4802070010
Gross Unit Price:
515.00
Features and Benefits
-
BrandWABCO
-
Part typePremium original quality
-
Calculated Volume (dm³)3.5599
-
Distance between bolts75x75 mm
-
Electrical connection3x Bayonet DIN 72585
-
Max. operating pressure10.0 bar
-
Mounting3x M8
-
Port thread 1M22 x 1.5
-
Port thread 2M22 x 1.5
-
Port thread 3Integrated Silencer
-
Port thread 4M12 x 1.5 JED - 464
-
Product categoryDevice
-
Protection classIP 69K
-
Technical specificationOE specification
-
Temperature range-40°C to +80°C
-
Voltage24 V
-
GTIN7895851041868
-
Size (mm x mm x mm)181 x 149 x 132
-
UPC193133444893
-
Weight (kg)1.787
-
Weight (lb)3.9397
Replaces
-
DAF1506237
-
DOLL7060956
-
FAYMONVILLE4731
-
FAYMONVILLE4371
-
FELDBINDER008851
-
FELDBINDER1055343
-
FRUEHAUFGB52000130
-
GOLDHOFER169976
-
HAMANAGB52000130
-
HINOS4802070010
-
HÜFFERMANN6BE00090100
-
KENWORTHS4802070010
-
KODAIRAV700120005
-
KRONE5813520
-
KRONE0642070010
-
KRONE58135200
-
KRONE505813520
-
KÄSSBOHRER21150110015
-
KÖGEL339103
-
KÖGEL3391030
-
LANGENDORF1200035
-
LECITRAILER4300621
-
LOHRA05101330
-
MERITORS4802070010
-
NIPPON TREX924301-00132
-
NOOTEBOOM2438894
-
NOOTEBOOM161326
-
PACCAR1506237
-
PETERBILTS4802070010
-
SCANIA1738467
-
SCHMITZ CARGOBULL054564
-
SCHMITZ CARGOBULL54564
-
SCHMITZ CARGOBULLINSO160069
-
SCHMITZ CARGOBULLINS0160069
-
SCHWARZMÜLLER71771
-
SCHWARZMÜLLER41400
-
TIRSAN21150110015
-
TOHOT423-007
-
VAN HOOL10744305
-
VOLVOWA4802070010
Doc Type
drawing
Locale
multi
Artical Number
4802070010____005_dascheck_g12_page-1---balagam
Doc Type
retrofit_instruction
Locale
multi
Artical Number
8159802793
Service & Repair
List of Spare Parts
| 1 | Body | 1 | ||
| 2 | Filter | 1 | 8993812682 | |
| 3 | O-Ring ISO3601-21,3x2,4 | 1 | 8977728174 | |
| 4 | Guide | 1 | 9730111504 | |
| 5 | Cylindrical Compression Spring | 1 | 8965168154 | |
| 6 | Valve | 1 | 8995069072 | |
| 7 | O-Ring ISO3601-37,77x2,62 | 1 | 8977862704 | |
| 8 | Valve seat | 1 | 9730111414 | |
| 9 | Retaining ring DIN472-42x1,75 | 1 | ||
| 10 | Piston | 1 | 9730116284 | |
| 11 | O-Ring ISO3601-80x4 | 1 | 8970708704 | |
| 12 | O-Ring ISO3601-9,3x2,4 | 1 | 8970800204 | |
| 13 | Hexagon head screw ISO4017-M8x50 | 2 | ||
| 14 | Hexagon head screw ISO4017-M8x30 | 1 | ||
| 15 | Hexagon head screw ISO4017-M8x70 | 1 | 8101260744 | |
| 16 | O-Ring ISO3601-88,57x2,62 | 1 | 8977867104 | |
| 17 | Body | 1 | ||
| 18 | Bushing | 1 | ||
| 19 | Sealing Ring (M/V | 2 | ||
| 20 | Solenoid | 1 | ||
| 21 | Spring Washer (M/V | 2 | ||
| 22 | Support | 1 | ||
| 23 | Fillister head screw ISO7045-M6x50 | 2 | ||
| 24 | O-Ring ISO3601-10,3x2,4 | 2 | 4802079202 | 8970805504 |
| 25 | Bush | 1 | 4802079202 | |
| 26 | Valve Washer | 1 | 8970179604 | |
| 27 | Cap | 1 | ||
| 28 | Tubular rivet 3.2x10 | 1 | ||
| 29 | Silencer | 1 | 4324070272 | |
| 30 | Searing Ring | 1 | 4802079202 | 8970306844 |
| 31 | Solenoid Valve | 1 | ||
| 32 | Cheese head screw DIN6912-M8x50 | 2 | 4802079202 | 8101280434 |
| 33 | O-Ring, statical | 1 | ||
| 34 | Adapter, full inside thread | 1 | ||
| 35 | Sealing Ring DIN7603-A16x20 | 1 | 8114010574 | |
| 36 | Pressure Sensor | 1 | 4410441080 |
